ORDER EXAMPLE

CHM 090 FA (5) 2 (5) 30 90 B14 V5

If the motor is also required, please specify: Size es. 90 L4

Power es. Kw 1.5 29

Poles es. 4

CHM/CHMR/CHME/CHMRE DESIGNATION - ORDER EXAMPLE

Voltage es. V230/400 Frequency es. 50 Hz Flange es. B14

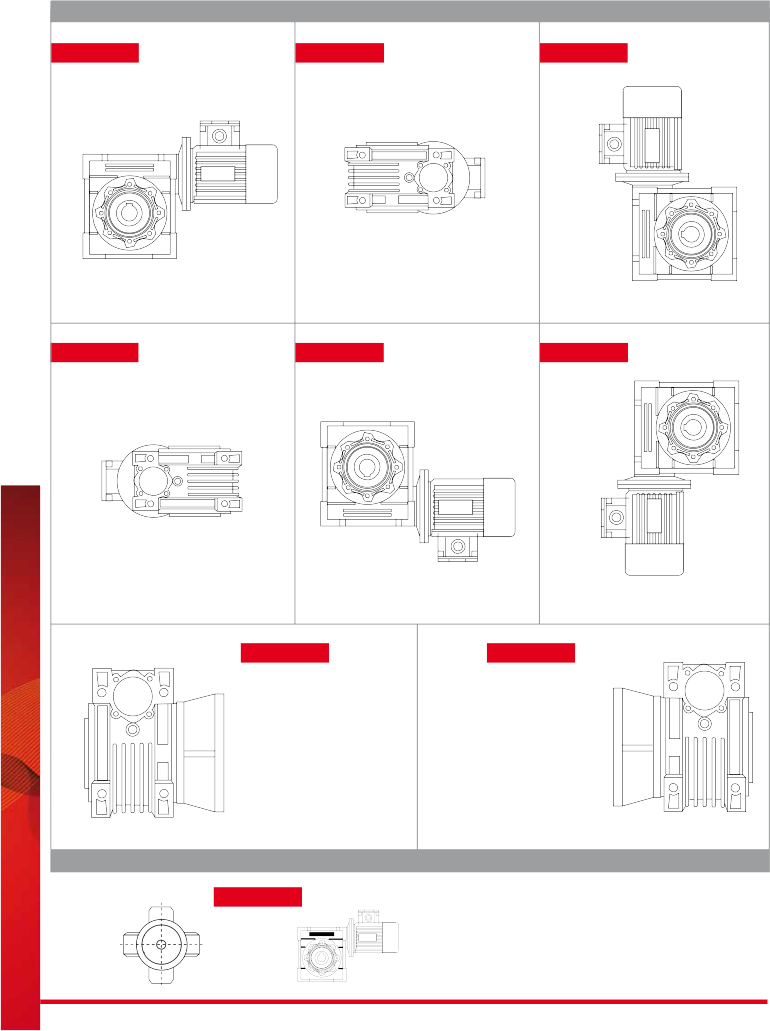

N.B. From size 25 to 63 the gears are always supplied in the Universal position and can therefore be mounted in any position, from size 75 to size 130 if the position required differs from B3 it must be specified.

In particular, in the event that a gear in position B3 is to be mounted in positions V5 or V6, the bearing positioned in the upper side must be lubricated using suitable grease that ensures proper lubrication.

We have tested Tecnolubeseal POLYMER 400/2 grease.

1) see page 26

2) see from page 31 to page 40

3) see from page 31 to page 40

4) see page 30

5) lack of instructions indicates that the gear is not equipped with an output flange.
