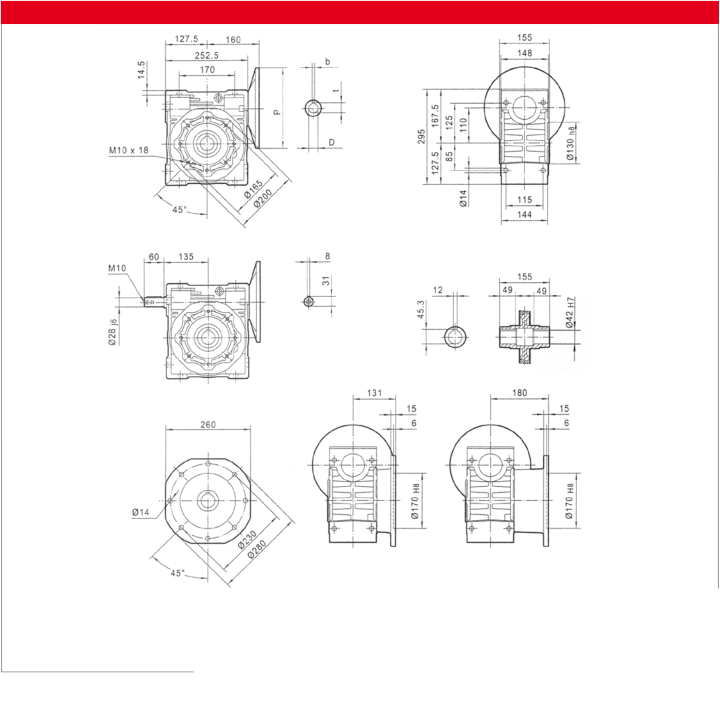

E
FA FB
FC
FD
PAM IEC | P | DE8 | b | t | PAM IEC | P | DE8 | b | t | |
100/112B5 | 250 | 28 | 8 | 31.3 | 100/112B14 | 160 | 28 | 8 | 31.3 | |
90B5 | 200 | 24 | 8 | 27.3 | 90B14 | 140 | 24 | 8 | 27.3 | |
80B5 | 200 | 19 | 6 | 21.8 | 80B14 | 120 | 19 | 6 | 21.8 |
Weight 13 Kg excluding motor
TYPE i=ratio n2 r/min Kw=P1 Nm=T2 f.s. Possible types of motor connections
7.5 | 186.7 | 7.50 | 344 | 1.6 | 132/112/100 | B5/B14 |
10 | 140.0 | 7.50 | 453 | 1.3 | 132/112/100 | B5/B14 |
15 | 93.3 | 7.50 | 659 | 1.0 | 132/112/100 | B5/B14 |
20 | 70.0 | 5.50 | 635 | 1.0 | 132/112/100 | B5/B14 |
25 | 56.0 | 4.00 | 573 | 1.2 | 112/100 | B5/B14 |
30 | 46.7 | 4.00 | 645 | 1.1 | 112/100 | B5/B14 |
40 | 35.0 | 3.00 | 636 | 1.1 | 112/100/90 | B5/B14* |
50 | 28.0 | 3.00 | 764 | 0.9 | 112/100/90 | B5/B14* |
60 | 23.3 | 2.20 | 645 | 1.0 | 112/100/90 | B5/B14* |
80 | 17.5 | 1.50 | 546 | 0.9 | 90 | B5/B14* |
100 | 14.0 | 1.10 | 470 | 1.0 | 90 | B5/B14* |
CHM 110
* 90 only B5
