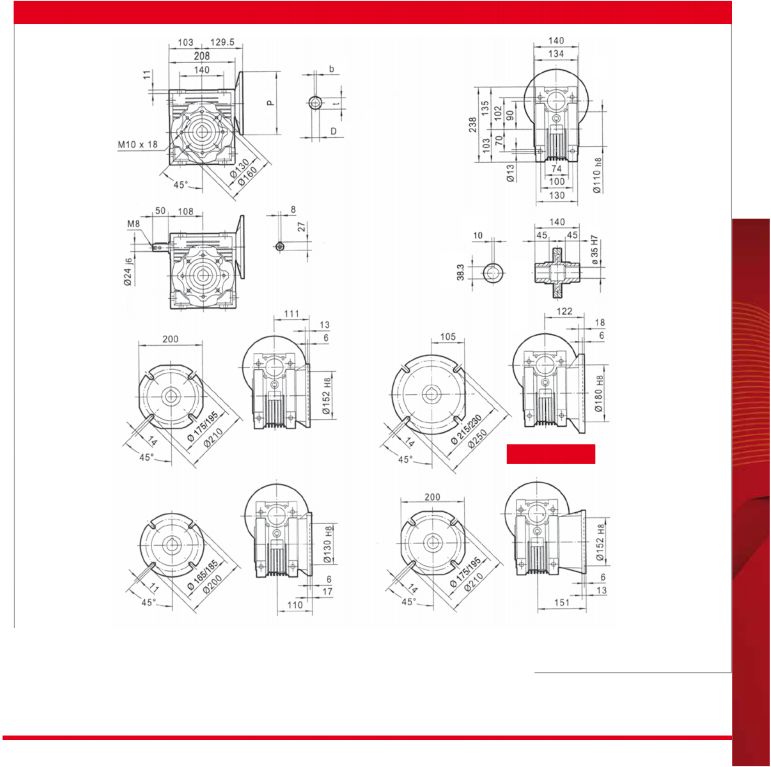

E
FA FB
PAM IEC | P | DE8 | b | t | PAM IEC | P | DE8 | b | t | |
100/112B5 | 250 | 28 | 8 | 31.3 | 100/112B14 | 160 | 28 | 8 | 31.3 | |
90B5 | 200 | 24 | 8 | 27.3 | 90B14 | 140 | 24 | 8 | 27.3 | |
80B5 | 200 | 19 | 6 | 21.8 | 80B14 | 120 | 19 | 6 | 21.8 | |
71B5 | 160 | 14 | 5 | 16.3 |
TYPE i=ratio n2 r/min Kw=P1 Nm=T2 f.s. Possible types of motor connections
7.5 | 186.7 | 4.00 | 184 | 1.5 | 100/90 | B5/B14 |
10 | 140.0 | 4.00 | 242 | 1.3 | 100/90 | B5/B14 |
15 | 93.3 | 4.00 | 351 | 1.1 | 100/90 | B5/B14 |
20 | 70.0 | 4.00 | 456 | 0.8 | 100/90 | B5/B14 |
25 | 56.0 | 3.00 | 417 | 0.8 | 100/90 | B5/B14 |
30 | 46.7 | 3.00 | 478 | 0.9 | 100/90 | B5/B14 |
40 | 35.0 | 1.50 | 306 | 1.2 | 90/80 | B5/B14 |
50 | 28.0 | 1.50 | 367 | 1.0 | 90/80 | B5/B14 |
60 | 23.3 | 1.50 | 421 | 0.8 | 90/80 | B5/B14 |
80 | 17.5 | 0.75 | 257 | 1.1 | 80 | B5/B14 |
100 | 14.0 | 0.75 | 300 | 0.9 | 80 | B5/B14 |
CHM 090
