CHM - MOUNTING POSITION
1 B3
4 2
1
TERMINAL BOX POSITION
N.B. The position of the terminal box always refers to the B3 position.
3
TYPE i=ratio n2 r/min Kw=P1 Nm=T2 f.s. Possible types of motor connections
7.5 | 186.7 | 0.09 | 3.8 | 2.8 | 56 | B14 |
10 | 140.0 | 0.09 | 5 | 2.4 | 56 | B14 |
15 | 93.3 | 0.09 | 7.2 | 1.6 | 56 | B14 |
20 | 70.0 | 0.09 | 9 | 1.3 | 56 | B14 |
25 | 56.0 | 0.09 | 10 | 1.0 | 56 | B14 |
30 | 46.7 | 0.09 | 12.3 | 1.1 | 56 | B14 |
40 | 35.0 | 0.09 | 13 | 1.0 | 56 | B14 |
50 | 28.0 | 0.09 | 14 | 0.7 | 56 | B14 |
60 | 23.3 | 0.09 | 14 | 0.6 | 56 | B14 |
CHM 025

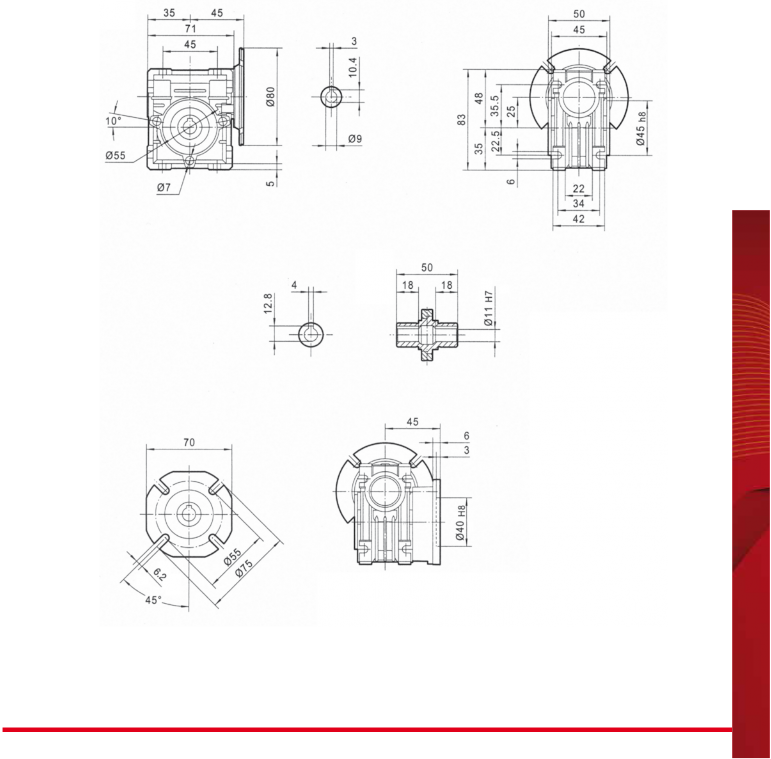

DIMENSIONS | |
FA | |
31
CHM 025 - PERFORM. WITH 4-POLE MOTORS - 1400 REVS. INPUT
Weight 0.7 Kg excluding motor
Quantity, availability and prices with Chiaravalli B2B
TYPE i=ratio n2 r/min Kw=P1 Nm=T2 f.s. Possible types of motor connections
7.5 | 186.7 | 0.22 | 9 | 2.1 | 63/56 | B5/B14 |
10 | 140.0 | 0.22 | 11 | 1.6 | 63/56 | B5/B14 |
15 | 93.3 | 0.22 | 16 | 1.0 | 63/56 | B5/B14 |
20 | 70.0 | 0.22 | 20 | 0.9 | 63/56 | B5/B14 |
25 | 56.0 | 0.18 | 20 | 1.0 | 63/56 | B5/B14 |
30 | 46.7 | 0.18 | 22 | 0.9 | 63/56 | B5/B14 |
40 | 35.0 | 0.18 | 21 | 0.8 | 63/56 | B5/B14 |
50 | 28.0 | 0.18 | 19 | 0.8 | 63/56 | B5/B14 |
60 | 23.3 | 0.09 | 18 | 0.9 | 56 | B5/B14 |
80 | 17.5 | 0.09 | 13 | 0.9 | 56 | B5/B14 |
CHM 030

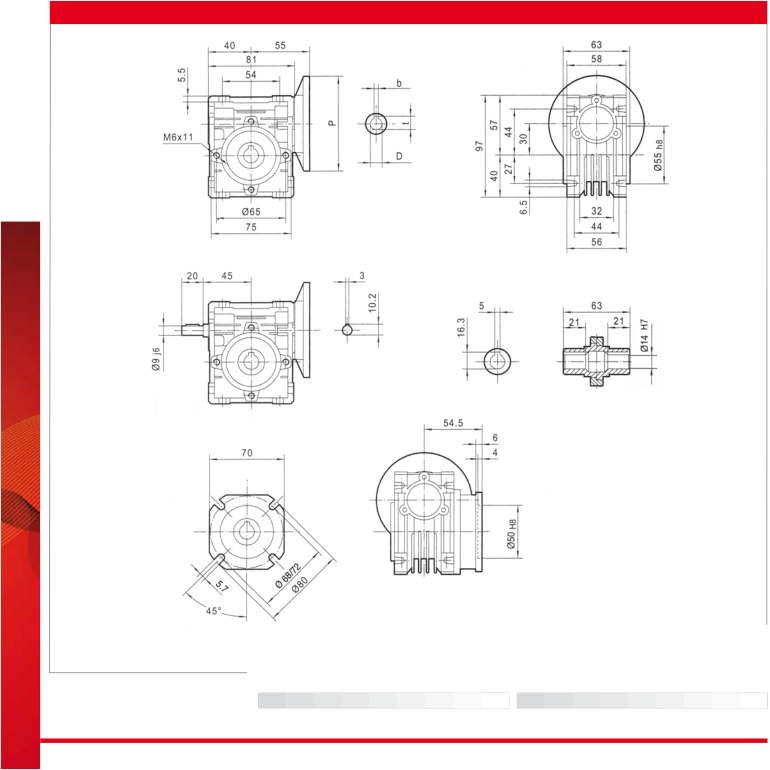

DIMENSIONS
32
CHM 030 - PERFORM. WITH 4-POLE MOTORS - 1400 REVS. INPUT
