E
FA

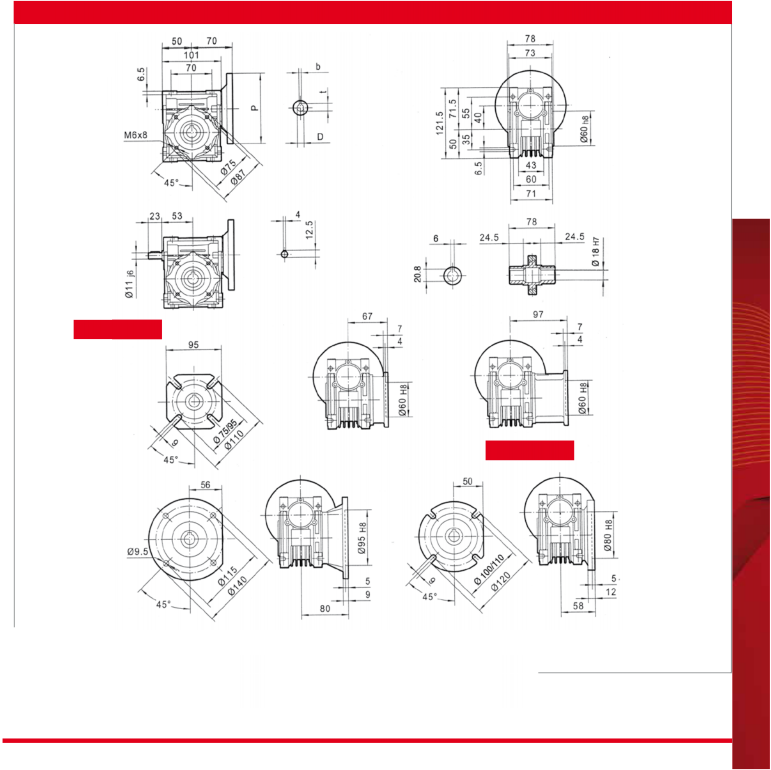

PAM IEC | P | DE8 | b | t | PAM IEC | P | DE8 | b | t | |
63B5 | 140 | 11 | 4 | 12.8 | 63B14 | 90 | 11 | 4 | 12.8 | |
56B5 | 120 | 9 | 3 | 10.4 | 56B14 | 80 | 9 | 3 | 10.4 |
Weight 1.2 Kg excluding motor
TYPE i=ratio n2 r/min Kw=P1 Nm=T2 f.s. Possible types of motor connections
7.5 | 186.7 | 0.55** | 22 | 1.6 | 71/63 | B5/B14 |
10 | 140.0 | 0.55** | 30 | 1.4 | 71/63 | B5/B14 |
15 | 93.3 | 0.55** | 44 | 0.9 | 71/63 | B5/B14 |
20 | 70.0 | 0.55** | 38 | 1.0 | 71/63 | B5/B14 |
25 | 56.0 | 0.37 | 45 | 0.9 | 71/63 | B5/B14 |
30 | 46.7 | 0.37 | 52 | 0.8 | 71/63 | B5/B14 |
40 | 35.0 | 0.25 | 43 | 0.9 | 71/63 | B5/B14 |
50 | 28.0 | 0.22 | 44 | 0.9 | 63/56 | B5/B14* |
60 | 23.3 | 0.18 | 42 | 0.8 | 63/56 | B5/B14* |
80 | 17.5 | 0.18 | 36 | 0.8 | 63/56 | B5/B14* |
100 | 14.0 | 0.18 | 35 | 0.8 | 63/56 | B5/B14* |
CHM 040
* 56 only B5 ** Size 71 Motors
