E
FA
FB
FA FB
FC | |||||
PAM IEC | P | DE8 | b | t | |
71B5 | 160 | 14 | 5 | 16.3 | |
63B5 | 140 | 11 | 4 | 12.8 | |
56B5 | 120 | 9 | 3 | 10.4 | |
FC FD
FD
PAM IEC P | DE8 | b | t | |||||
71B | 14 | 105 | 4 | 5 | 1 | 6.3 | ||
63B | 14 | 90 | 1 | 4 | 1 | 2.8 | ||
TYPE i=ratio n2 r/min Kw=P1 Nm=T2 f.s. Possible types of motor connections
7.5 | 186.7 | 0.75 | 33.3 | 2.0 | 80/71 | B5/B14 |
10 | 140.0 | 0.75 | 43.9 | 1.6 | 80/71 | B5/B14 |
15 | 93.3 | 0.75 | 62.6 | 1.2 | 80/71 | B5/B14 |
20 | 70.0 | 0.75 | 80 | 0.9 | 80/71 | B5/B14 |
25 | 56.0 | 0.55 | 70 | 1.0 | 80/71 | B5/B14 |
30 | 46.7 | 0.55 | 80 | 1.0 | 80/71 | B5/B14 |
40 | 35.0 | 0.37 | 67 | 1.1 | 80/71/63 | B5/B14* |
50 | 28.0 | 0.37 | 78 | 0.9 | 71/63 | B5/B14* |
60 | 23.3 | 0.37 | 87 | 0.8 | 71/63 | B5/B14* |
80 | 17.5 | 0.25 | 70 | 0.9 | 71/63 | B5/B14* |
100 | 14.0 | 0.18 | 59 | 0.9 | 71/63 | B5/B14* |

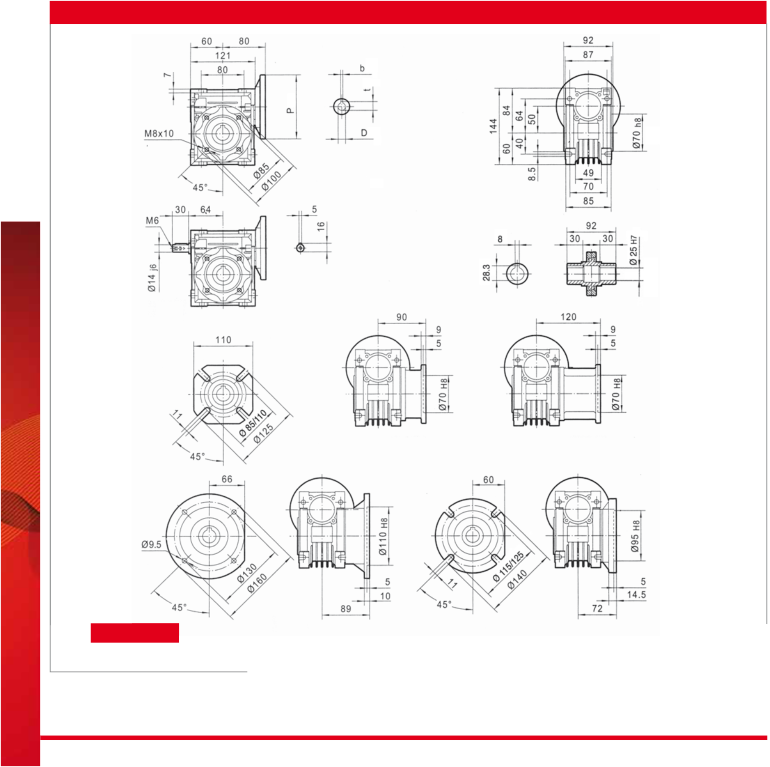

CHM 050
* 63 only B5
