E
FA FB
FC
FD
FE
PAM IEC | P | DE8 | b | t | PAM IEC | P | DE8 | b | t | |
90B5 | 200 | 24 | 8 | 27.3 | 90B14 | 140 | 24 | 8 | 27.3 | |
80B5 | 200 | 19 | 6 | 21.8 | 80B14 | 120 | 19 | 6 | 21.8 | |
71B5 | 160 | 14 | 5 | 16.3 | 71B14 | 105 | 14 | 5 | 16.3 |
Weight 6.2 Kg excluding motor
TYPE i=ratio n2 r/min Kw=P1 Nm=T2 f.s. Possible types of motor connections
7.5 | 186.7 | 4.00 | 180 | 1.0 | 100/90 | B5/B14 |
10 | 140.0 | 4.00 | 237 | 0.8 | 100/90 | B5/B14 |
15 | 93.3 | 3.00 | 260 | 0.8 | 100/90 | B5/B14 |
20 | 70.0 | 1.50 | 167 | 1.2 | 90/80 | B5/B14 |
25 | 56.0 | 1.50 | 204 | 1.0 | 90/80 | B5/B14 |
30 | 46.7 | 1.50 | 232 | 1.0 | 90/80 | B5/B14 |
40 | 35.0 | 1.10 | 214 | 1.0 | 90/80 | B5/B14 |
50 | 28.0 | 0.75 | 176 | 1.2 | 90/80/71 | B5/B14* |
60 | 23.3 | 0.75 | 199 | 1.0 | 80/71 | B5/B14* |
80 | 17.5 | 0.55 | 178 | 1.1 | 80/71 | B5/B14* |
100 | 14.0 | 0.55 | 203 | 0.9 | 80/71 | B5/B14* |

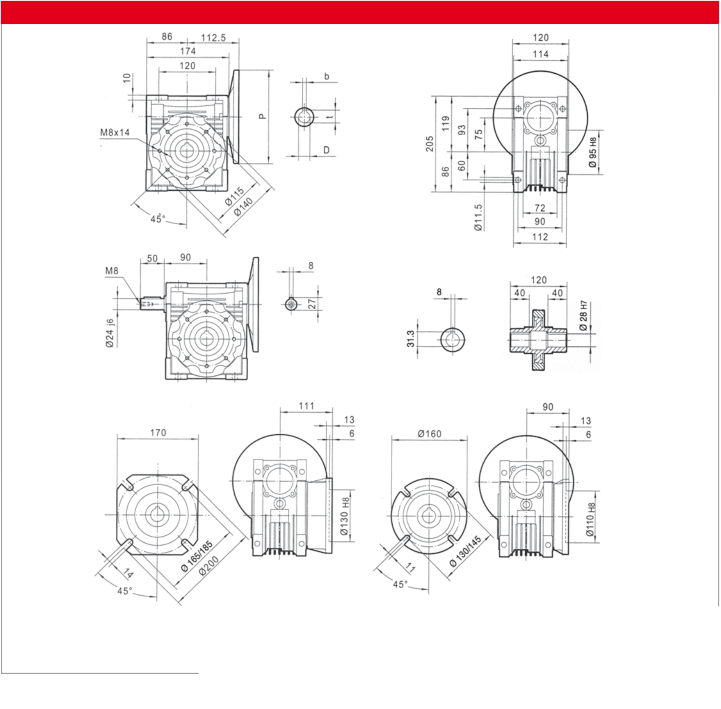

CHM 075
* 71 only B5
