E
FA FB

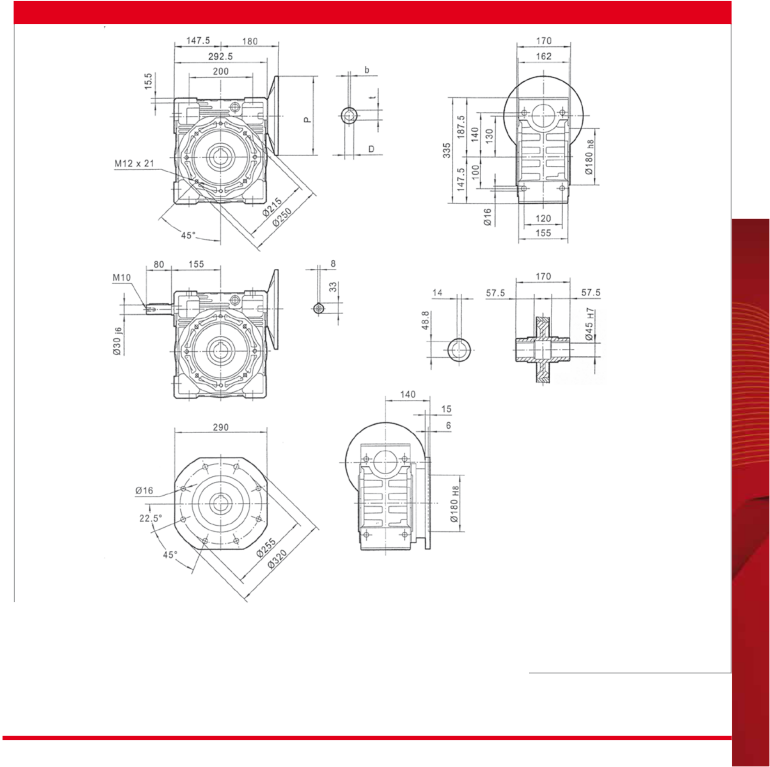

PAM IEC | P | DE8 | b | t | ||||
132B14 | 20 | 0 | 38 | 10 | 4 | 1.3 | ||
112B14 | 16 | 0 | 28 | 8 | 3 | 1.3 | ||
100B14 | 16 | 0 | 28 | 8 | 3 | 1.3 | ||
PAM IEC | P | DE8 | b | t |
132B5 | 300 | 38 | 10 | 41.3 |
112B5 | 250 | 28 | 8 | 31.3 |
100B5 | 250 | 28 | 8 | 31.3 |
90B5 | 200 | 24 | 8 | 27.3 |
80B5 | 200 | 19 | 6 | 21.8 |
Weight 35 Kg excluding motor
TYPE i=ratio n2 r/min Kw=P1 Nm=T2 f.s. Possible types of motor connections
7.5 | 186.7 | 7.50 | 348 | 2.2 | 132 | B5/B14 |
10 | 140.0 | 7.50 | 455 | 1.8 | 132 | B5/B14 |
15 | 93.3 | 7.50 | 660 | 1.2 | 132 | B5/B14 |
20 | 70.0 | 7.50 | 877 | 1.0 | 132 | B5/B14 |
25 | 56.0 | 7.50 | 1071 | 0.9 | 132 | B5/B14 |
30 | 46.7 | 7.50 | 1225 | 0.8 | 132/112/100 | B5/B14 |
40 | 35.0 | 5.50 | 1173 | 0.9 | 132/112/100 | B5/B14 |
50 | 28.0 | 4.00 | 1023 | 0.9 | 100 | B5/B14 |
60 | 23.3 | 3.00 | 886 | 1.1 | 100 | B5/B14 |
80 | 17.5 | 3.00 | 1112 | 0.8 | 100/90 | B5/B14* |
100 | 14.0 | 1.50 | 652 | 1.1 | 100/90 | B5/B14* |
CHM 130
* 90 only B5
