E

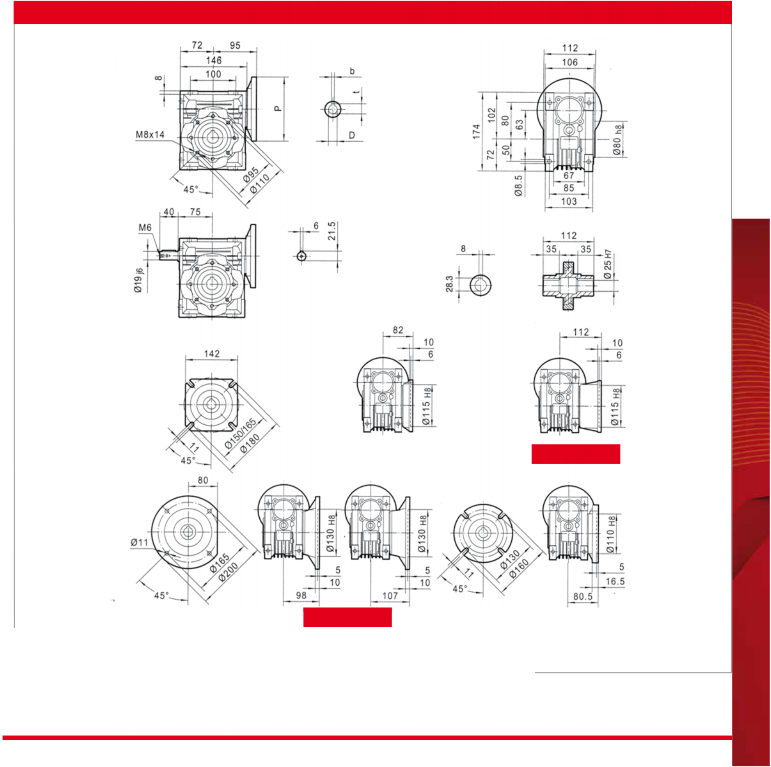

FA FB
FD
PAM IEC | P | DE8 | b | t | PAM IEC | P | DE8 | b | t | |
80B5 | 200 | 19 | 6 | 21.8 | 80B14 | 120 | 19 | 6 | 21.8 | |
71B5 | 160 | 14 | 5 | 16.3 | 71B14 | 105 | 14 | 5 | 16.3 | |
63B5 | 140 | 11 | 4 | 12.8 |
FC
Weight 3.5 Kg excluding motor
TYPE i=ratio n2 r/min Kw=P1 Nm=T2 f.s. Possible types of motor connections
7.5 | 186.7 | 1.50 | 67.4 | 1.8 | 90/80 | B5/B14 |
10 | 140.0 | 1.50 | 88.6 | 1.4 | 90/80 | B5/B14 |
15 | 93.3 | 1.50 | 126 | 1.19 | 90/80 | B5/B14 |
20 | 70.0 | 1.50 | 164 | 0.8 | 90/80 | B5/B14 |
25 | 56.0 | 1.10 | 145 | 0.9 | 90/80 | B5/B14 |
30 | 46.7 | 1.10 | 165 | 1.0 | 90/80 | B5/B14 |
40 | 35.0 | 0.75 | 143 | 1.0 | 80/71 | B5/B14 |
50 | 28.0 | 0.55 | 122 | 1.1 | 80/71 | B5/B14 |
60 | 23.3 | 0.55 | 138 | 0.9 | 80/71 | B5/B14 |
80 | 17.5 | 0.37 | 114 | 1.1 | 80/71 | B5/B14 |
100 | 14.0 | 0.37 | 127 | 0.9 | 71 | B5/B14 |
CHM 063
