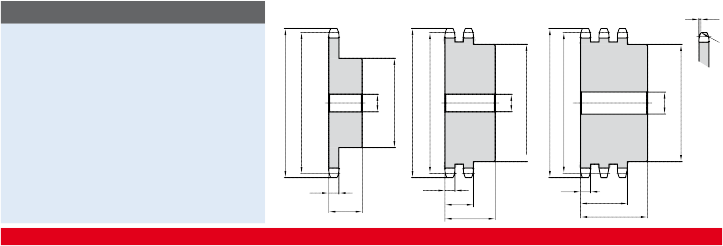

Sprockets tooth width B1 15 mm Sprockets tooth width b1 14,7 mm Sprockets tooth width B2 44 mm Sprockets tooth width B3 73,3 mm

< Previous Chiaravalli transmission components | Products index | Next Chiaravalli transmission components >

Sprockets tooth width B1 15 mm Sprockets tooth width b1 14,7 mm Sprockets tooth width B2 44 mm Sprockets tooth width B3 73,3 mm

CHAIN

Pitch 25,4 mm B1 b1 b1

Inner width 15,88 mm B2 B3

Roller Ø 15,88 mm A A A

SIMPLES DOUBLE TRIPLE

Z 8	de	dp	PART NUMBER	dm	D1	A	kg.	PART NUMBER	dm	D1	A	kg.	PART NUMBER	dm	D1	A	kg.
9
10	95,32	82,79	11108010	55	16	35	0,82	11208010	56	20	65	1,52
11	103,28	90,14	11108011	61	16	40	1,13
12	111,26	98,14	11108012	69	16	40	1,42	11208012	72	20	70	2,60	11308012	72	25	100	3,62
13	119,26	106,12	11108013	78	16	40	1,77	11208013	78	20	70	3,22	11308013	78	25	100	4,45
14	127,27	114,15	11108014	84	16	40	2,07	11208014	86	20	70	3,82	11308014	86	25	100	5,37
15	135,29	122,17	11108015	92	16	40	2,46	11208015	94	20	70	4,51	11308015	94	25	100	6,37
16	143,32	130,20	11108016	100	20	45	3,13	11208016	102	20	70	5,17	11308016	102	30	100	7,45
17	151,35	138,22	11108017	100	20	45	3,34	11208017	110	20	70	5,97	11308017	110	30	100	8,60
18	159,39	146,28	11108018	100	20	45	3,55	11208018	118	20	70	6,84	11308018	118	30	100	9,84
19	167,44	154,33	11108019	100	20	45	3,78	11208019	126	20	70	7,75	11308019	126	30	100	11,16
20	175,49	162,38	11108020	100	20	45	4,02	11208020	130	20	70	8,43	11308020	130	30	100	12,36
21	183,54	170,43	11108021	110	20	50	5,01	11208021	130	25	70	9,24
22	191,60	178,48	11108022	110	20	50	5,26
23	199,66	156,53	11108023	110	20	50	5,56
24	207,72	194,59	11108024	110	20	50	5,85
25	215,78	202,66	11108025	110	20	50	6,16	11208025	130	25	70	12,52
26	223,84	210,72	11108026	120	20	50	6,96
27	231,91	218,79	11108027	120	20	50	7,29
28	239,98	226,85	11108028	120	20	50	7,64
29
30	256,12	243,00	11108030	120	20	50	7,96

MATERIAL C 45 UNI 7845

CAD drawings available on our site

Quantity, availability and prices on B2B Chiaravalli

26 CHAIN SPROCKETS ASA 100

r

x 3/4” for roller chains in compliance with DIN 8188 - ISO/R 606 - ANSI B 29.1
