Sprockets tooth width B1 12 mm Sprockets tooth width b1 11,8 mm Sprockets tooth width B2 34,6 mm Sprockets tooth width B3 57,4 mm

< Previous Chiaravalli transmission components | Products index | Next Chiaravalli transmission components >

Sprockets tooth width B1 12 mm Sprockets tooth width b1 11,8 mm Sprockets tooth width B2 34,6 mm Sprockets tooth width B3 57,4 mm

CHAIN

Pitch 19,05 mm

Inner width 12,7 mm

Roller Ø 11,91 mm

r

D1

dm de

dp

D1

dm

de dp

D1

dm

C

b1 b1

B2 B3

A A

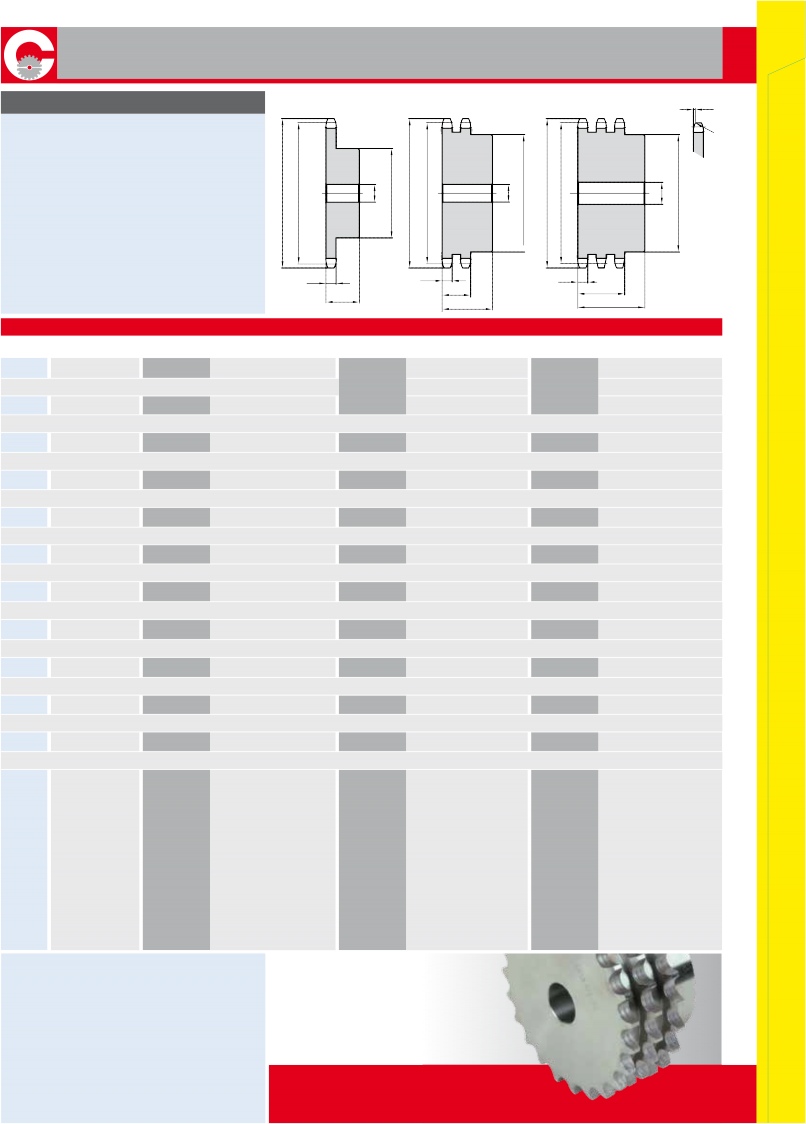

CHAIN SPROCKETS ASA 60 pitch 3/4” x 1/2”

MATERIAL C 45 UNI 7845

	B1
			A

Z	de	dp	PART NUMBER	dm	D1	A	kg.	PART NUMBER	dm	D1	A	kg.	PART NUMBER	dm	D1	A	kg.
10	71,54	61,64	11106010	42	12	30	0,38	11206010	42	12	45	0,58	11306010	42	16	65	0,86
11	77,51	67,61	11106011	45	12	30	0,50	11206011	47	16	50	0,80
12	83,49	73,61	11106012	45	12	30	0,64	11206012	53	16	50	1,01	11306012	53	20	70	1,47
13	89,49	79,59	11106013	60	14	35	0,80	11206013	59	16	50	1,24	11306013	59	20	70	1,78
14	95,50	85,61	11106014	60	14	35	0,97	11206014	65	16	50	1,45	11306014	65	20	70	2,16
15	101,52	91,63	11106015	60	14	35	1,16	11206015	71	16	50	1,73	11306015	71	20	70	2,52
16	107,54	97,65	11106016	75	16	35	1,34	11206016	77	20	50	2,03	11306016	77	20	70	2,93
17	113,56	103,67	11106017	75	16	35	1,53	11206017	83	20	50	2,35	11306017	83	20	70	3,44
18	119,59	109,71	11106018	75	16	35	1,61	11206018	89	20	50	2,70	11306018	89	20	70	3,91
19	125,63	115,75	11106019	80	16	35	1,70	11206019	95	20	50	3,06	11306019	95	20	70	4,43
20	131,67	121,78	11106020	80	16	35	1,84	11206020	100	20	50	3,45	11306020	100	20	70	4,96
21	137,71	127,82	11106021	80	16	35	2,35	11206021	100	20	50	3,69	11306021	100	20	70	5,41
22	143,75	133,86	11106022	90	20	40	2,45	11206022	100	20	50	3,96	11306022	100	20	70	59,7
23	149,79	139,90	11106023	90	20	40	2,56	11206023	110	20	50	4,50	11306023	110	20	70	6,64
24	155,84	145,94	11106024	90	20	40	2,67	11206024	110	20	50	4,81	11306024	110	20	70	7,21
25	161,88	152,00	11106025	90	20	40	2,79	11206025	120	20	50	5,40	11306025	120	20	70	7,97
26	167,93	158,04	11106026	90	20	40	3,08	11206026	120	20	50	5,73
27	173,98	164,09	11106027	90	20	40	3,21	11206027	120	20	50	6,05
28	180,03	170,13	11106028	95	20	40	3,34	11206028	120	20	50	6,43
30	192,14	182,25	11106030	95	20	40	3,62	11206030	120	20	50	7,18

SIMPLES DOUBLE TRIPLE

CAD drawings available on our site

Quantity, availability and prices on B2B Chiaravalli

25

CHAIN SPROCKETS ASA 80 1

r

CHAIN SPROCKETS ASA 80 pitch 1” x 5/8” for roller chains in compliance with DIN 8188 - ISO/R 606 - ANSI B 29.1

pitch 1” x 5/8” C

CHAIN SPROCKETS

Tooth radius r3 27 mm

Radius width C 3,2 mm

de

dp

D1

dm de

dp

D1

dm

de dp

D1

dm
