DIMENSIONI CMC CMC DIMENSIONS

< Previous Chiaravalli planetary gearboxes | Products index | Next Chiaravalli planetary gearboxes >

DIMENSIONI CMC CMC DIMENSIONS

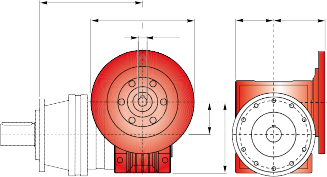

CHPL 2500 CMC - Riduttore a vite senza fine CHM in entrata CHPL 2500 CMC - CHM input worm gearboxes

CHPL	CHM 50					CHM 63
	L	I	H	M	N	L	I	H	M	N
2501	290.5	50	110	60	80	300	63	135	72	95
2502	338.5					348
2503	386.5					396
2504	434.5					444

LV

ØC M N

V V

I

ØAE

CHPL	CHM 75					CHM 90
	LV	I	H	M	N	LV	I	H	M	N
2501	279	75	161	86	112.5	289	90	193	103	129.5
2502	327					337
2503	375					385
2504	423					433

H

ØC p. ØAE P6

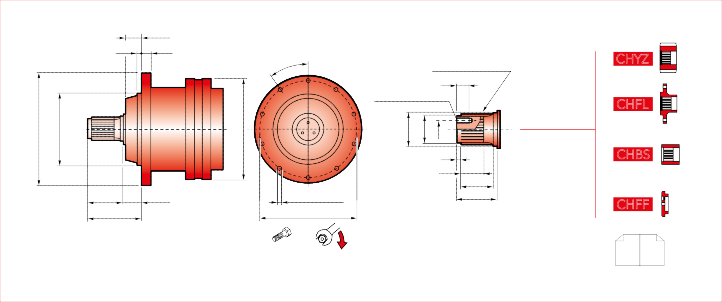

CHPLB 2500 CMC - Flange motori IEC CHPLB 2500 CMC - IEC Motor flanges

CHPLB	IEC 63				IEC 71				IEC 80				IEC 90
	L	L	P	ØD	L	L	P	ØD	L	L	P	ØD	L	L	P	ØD
2502	240	196	36	140	240	196	36	160	240	216	56	200	240	216	56	200
2503	288				288				288				288
2504	336				336				336				336

L

CHPLB	IEC 100				IEC 112				IEC 132				IEC 160
	L	LP	P	ØD	L	LP	P	ØD	L	LP	P	ØD	L	LP	P	ØD
2502	240	226	66	250	240	226	66	250	240	260	100	300	240	299	139	350
2503	288				288				288				-
2504	336				336				-				-

P

LP

P P P P ØD

p. P4

CHPLB 2500 CMC - Alberi maschi entrata CHPL 2500 CMC - Male input shafts

L

LE

LT

ØE

CHPLB	CM42					CM65					CP65
	L	LT	T	LE	ØE	L	LT	T	LE	ØE	L	LT	T	LE	ØE
2502	240	253	93	82	42 h6	240	297.5	121.5	105	65 h6	240	329	153	105	65 h6
2503	288					288					288
2504	336					336					336

p.

E P7

D8 CHPL/CHPLB 2500 CPS

CHPL/CHPLB 2500
