B3 B6 V5
1
1
1
B7 B8 V6
69
1
1
1
F1 F2
1 B3
4 2
CH - MOUNTING POSITION
TERMINAL BOX POSITION
N.B. The position of the terminal box always refers to the B3 position.
3
TYPE i=ratio n2 r/min Kw=P1 Nm=T2 f.s. Possible types of motor connections
7 | 200 | 1.85 | 75 | 1.5 | 90/80 | B5/B14 | |
10 | 140 | 1.85 | 105 | 1.3 | 90/80 | B5/B14 | |
12 | 117 | 1.85 | 129 | 1.1 | 90/80 | B5/B14 | |
15 | 93 | 1.85 | 146 | 1.0 | 90/80 | B5/B14 | |
19 | 74 | 1.50 | 150 | 1.0 | 90/80 | B5/B14 | |
24 | 58 | 1.10 | 138 | 1.1 | 90/80 | B5/B14 | |
30 | 47 | 1.10 | 155 | 1.0 | 90/80 | B5/B14 | |
38 | 37 | 0.75 | 133 | 1.1 | 90/80 | B5/B14 | |
45 | 31 | 0.75 | 152 | 0.9 | 80/71 | B5/B14 | |
64 | 22 | 0.37 | 101 | 1.2 | 80/71 | B5/B14 | |
80 | 17 | 0.37 | 112 | 1.0 | 71 | B5/B14 | |
100 | 14 | 0.37 | 110 | 1.0 | 71 | B5/B14 | |
Weight Kg 5,2 |
CH 06

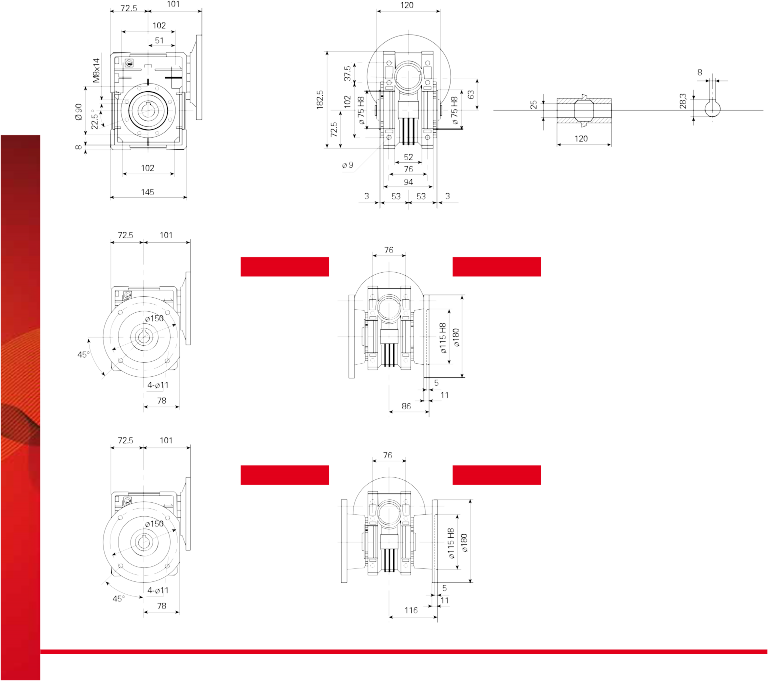

DIMENSIONS
70
CH 06 - PERFORMANCE WITH 4-POLE MOTORS - 1400 REVS. INPUT
