Binary installation topology
Binary stand-alone operation
Features – Fixed speeds/ramps can be set using potentiometers or parameterized with software
– Central control using discrete signals from a PLC
– Can be started up without a PC
– 4 digital inputs
– 1 relay signal output
Possible applications – Simple stand-alone und single applications
– For applications that require soft startup behavior
– Applications with two fixed speeds
– For applications with high breakaway torques
– As a replacement for line-powered drives
Application examples – Simple conveyors
– Rotary tables
– Adjustment drives
– Agitators and mixers
– Crushers and shredders
– Presses
Supply system
Controller / PLC
Supply system
Controller / PLC
Safety relay
Safety relay
Control cabinet level
4 inputs
Ready
Field level
Control cabinet level
4 inputs
Ready
Field level
STO
STO
NET RUN DRIVE
DRC..-DBC electronic motor
MOVIGEAR-DBC-B
199

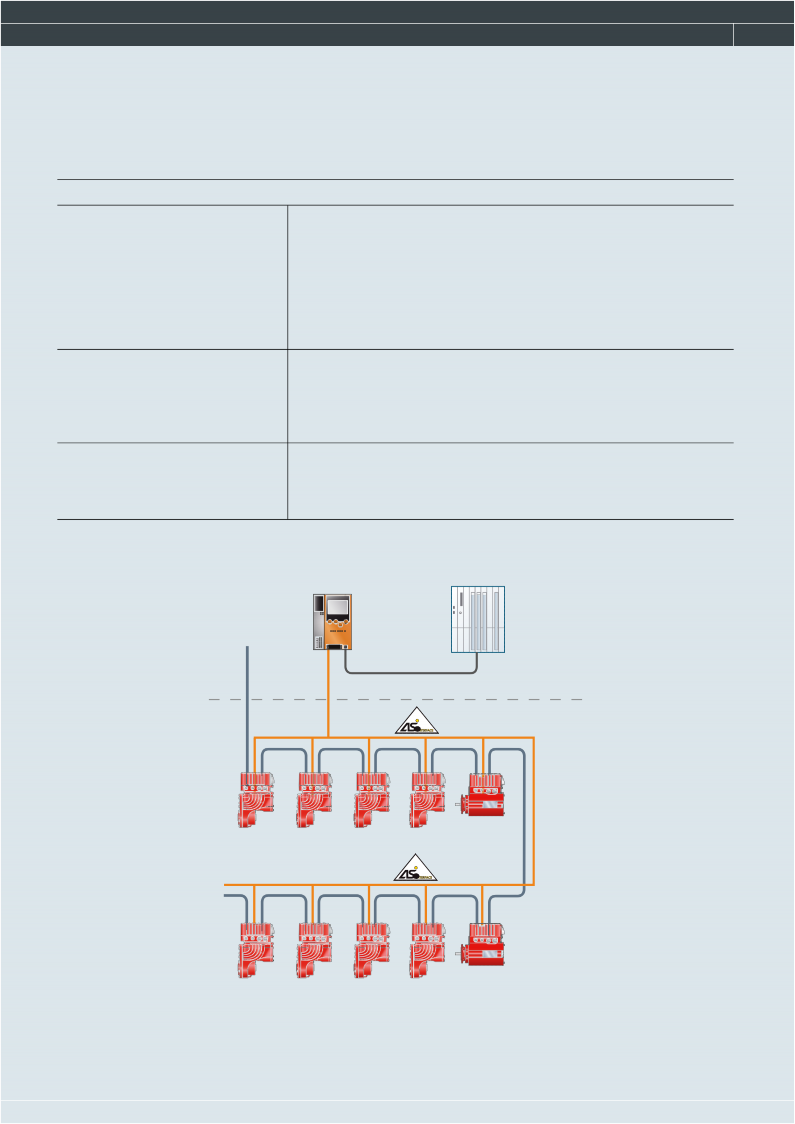

Installation topology with AS-Interface
AS-Interface Simple and economical fieldbus connection
Features – Parameterizable fixed speeds and ramps
– 2 designs
- Binary slave (GLK30)
- Double slave (GLK31)
– 2 sensor inputs connected directly via the AS-Interface nodes
– Safe Torque Off (STO) according to EN 13849 PL e
– 4 digital inputs for local mode
– Expanded startup using the diagnostics interface
Possible applications – Simple fieldbus connection
– For applications that require soft startup behavior
– Signal feedback of connected sensors
– For applications that require a lot of space 05
– Individual parameter access in connection with GLK31
Application examples – Accumulating roller conveyors
– Roller and wheel conveyors
– Pallet conveyors
– Rotary tables
AS-Interface controller
PLC
Supply system
Control cabinet level
AS-Interface
Field level
MOVIGEAR DAC-B
DRC..-DAC
electronic motor
AS-Interface
MOVIGEAR DAC-B
DRC..-DAC
electronic motor
