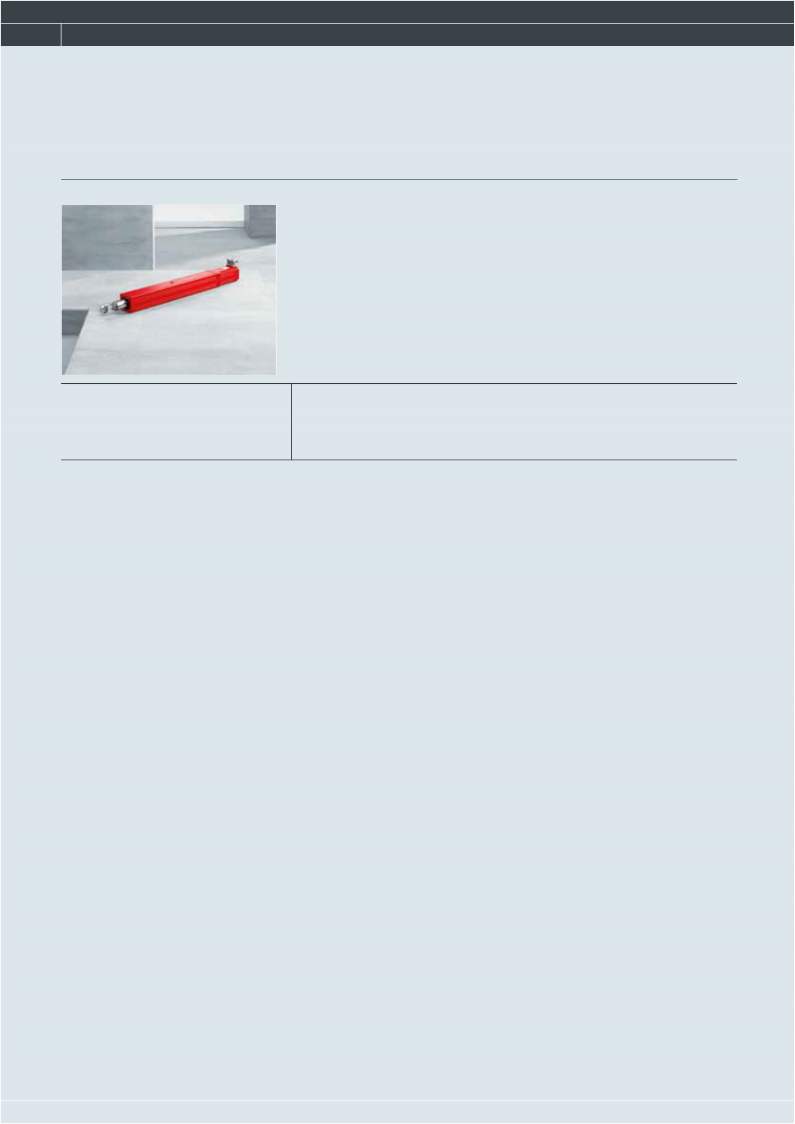

Standard CMS.. electric cylinders / with oil bath lubrication
CMSB50/63/71 series (with oil bath lubrication)
Features – Patented maintenance-free oil bath lubrication (lifetime lubrication)
– Very high thermal power density
– Especially low-noise operation
– Very short working strokes (< 1 mm)
– Combined with drive electronics from SEW-EURODRIVE, this series makes for energy-efficient drive solutions that ensure a high level of process reliability and that can be easily integrated into existing automation systems
Electrical data
Type | NEW: CMSB50S | NEW: CMSB50M | NEW: CMSB50L |
Max. torque Nm | 5.2 | 7.6 1) | 7.6 1) |
Standstill torque Nm | 1.3 | 2.5 | 3.5 |
Mechanical data
Rated speed nN | 3 000 min-1 4 500 min-1 6 000 min-1 | |||
Screw type | KGT 2) 20x5 | KGT 2) 20x5 | KGT 2) 20x5 | |
Max. continuous feed force 4) N | 1 200 | 2 300 | 3 200 | |
Peak feed force N | 5 300 | 8 000 | 8 000 | |
Stroke lengths mm | 70 / 100 / 150 / 200 / 300 / 400 / 600 | |||
Max. speed mm/s | 375 | 375 | 375 | |
Electrical data
Type | CMSB63S | CMSB63M |
Max. torque Nm | 11.1 | 11.1 1) |
Standstill torque Nm | 2.9 | 5.3 |
Mechanical data
Rated speed nN | 3 000 min-1 4 500 min-1 6 000 min-1 | |||
Screw type | KGT 2) 25x6 | PGT 3) 20x5 | KGT 2) 25x6 | PGT 3) 20x5 |
Max. continuous feed force 4) N | 2 400 | 2 800 | 4 100 | 5 200 |
Peak feed force N | 10 000 | 10 000 | ||
Stroke lengths mm | 60 / 100 / 160 / 180 / 200 / 400 / 600 | 100 / 200 | 60 / 100 / 160 / 180 / 200 / 400 / 600 | 100 / 200 |
Max. speed mm/s | 450 | 375 | 450 | 375 |
07
Electrical data
Type | CMSB71S | CMSB71M | CMSB71L |
Max. torque Nm | 19.2 | 25 4) | 25 4) |
Standstill torque Nm | 6.4 | 9.4 | 13.1 |
Mechanical data
Rated speed nN | 2 000 min-1 3 000 min-1 4 500 min-1 6 000 min-1 | ||
Screw type | KGT 2) 32x6 | KGT 2) 32x6 | KGT 2) 32x6 |
Max. continuous feed force 4) N | 6 200 | 8 200 | 12 000 |
Peak feed force N | 18 000 | 24 000 | 24 000 |
Stroke lengths mm | 100 / 160 / 200 / 400 / 600 / 800 / 1 000 / 1 200 | ||
Max. speed mm/s | 450 | 450 | 450 |
1) Maximum permitted torque 2) Ball screw
3) Planetary roller screw 4) Depending on average travel speed
