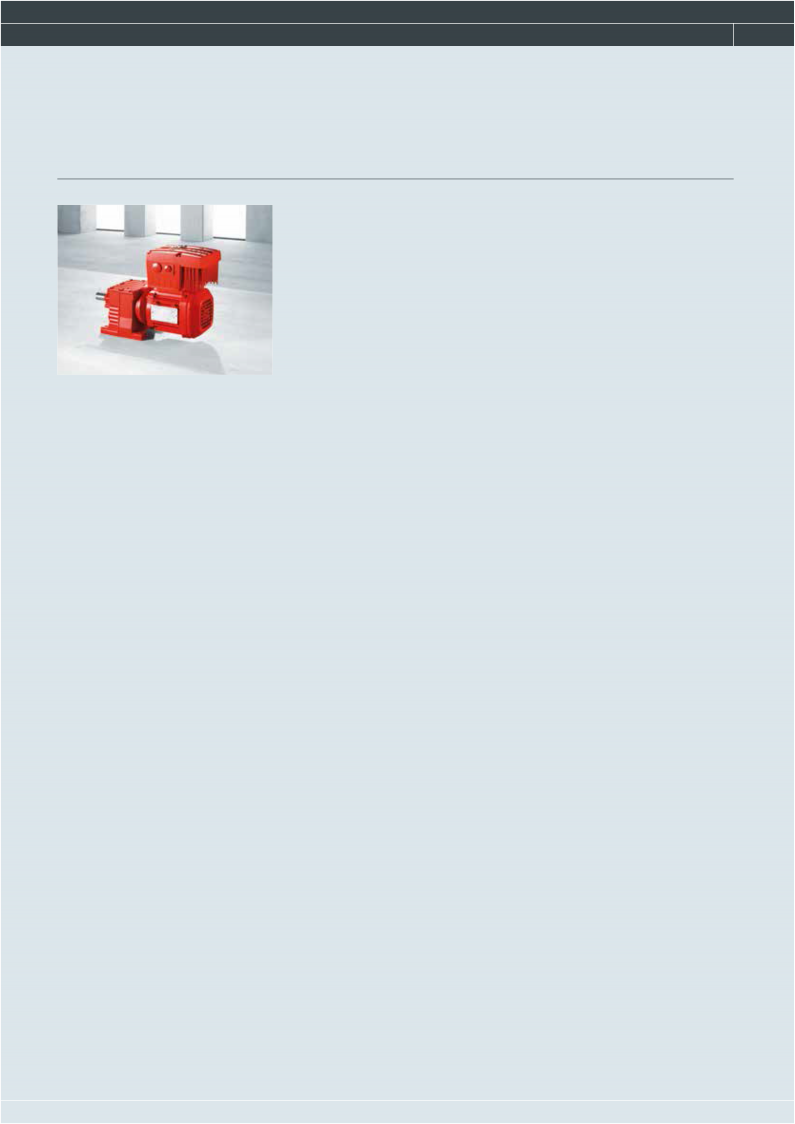

Features

Simple user interfaces for short installation times

FieldPower contact block* for energy distribution with modern and reliable connector technology

– Simple connection and wiring technology

– Systematic integration of energy distribution components in the housing of the drive unit

– Consistent use of standard plug connectors for control and motor connection

– Extremely short assembly and installation times

– In connection with AS-Interface, two sensors can, in addition to the drive function, be connected to the unit for direct communication with the system controller (everything included)

Function

Frequency inverters with parameterizable ramps and up to 4 fixed speeds

Control

AS-Interface

Binary control signals

Max. motor power kW

0.75

1.1

1.5

0.75.

1.1

1.5

Connection voltage VAC

AC 3× 380 -10% to 480 + 10%

Line frequency Hz

50 / 60

Line connection

FieldPower contact block*

Line protection

External

Ambient temperature

-20 °C to +40 °C

Degree of protection

IP55

Service interface

For connecting the keypad or the interface for MOVITOOLS MotionStudio

Controller connection

M12 plug connector 1× male / 2x female

M12 plug connector 2× male / 1x female

Inputs and outputs

2 digital inputs for connecting external sensors

– 4 control inputs

– 1 digital output

– DC 24 V output

Brake control

– Supply via motor connection

– Brake voltage = line voltage

– BG rectifier in motor terminal box

Options

– Built-in EMC filter: Facilitates EMC-compliant installation

– Built-in main switch: Simply switch off the inverter individually during maintenance work

Dimensions L×W×H in mm

255 × 150 × 159
