EAGLEBURGMANN
Mechanical seals, magnetic couplings
EagleBurgmann products deliver safe, reliable sealing performance in any application including oil pumping and cracking, gas compression, process gas containment, phase separation or synthesis of chemical substances, pipeline sealing, dairy product filling or compensation of temperature expansion in flue gas systems.
Our challenge is to design seals that are able to withstand a wide range of media, different aggregate states and varying pressure and temperature and to provide special solutions for small installation up to seal contact areas of several meters. Every application has its own special requirements profile, and our job is to provide the best sealing solution.
EagleBurgmann is one of the world’s leading manufacturer of industrial sealing solutions. Our extensive portfolio includes everything from standard seals to one-off application-specific designs
EagleBurgmann offers a complete range of liquid and gaslubricated pump shaft seals including standard and engineered seals in single and multi-seal versions. Sealing solutions for normal and sterile applications. The design and selection of materials ensure that the seals are rugged enough to deliver outstanding cost and engineering performance in everyday applications.
EagleBurgmann BT Mechanical seals
Mechanical seal for large-series cold water pumps, produced in millions of units per year. The BT-AR owes its success to the wide range of application, the short axial length (this allows for more economic pump construction and saves material), and the best quality/price ratio.
The elasticity of the bellows design enables a more robust operation. The BT-AR can also be used as a multiple seal in tandem or back-to-back arrangement when the product media cannot ensure lubrication, or when sealing media with a higher solids content. Installation proposals can be provided upon request.

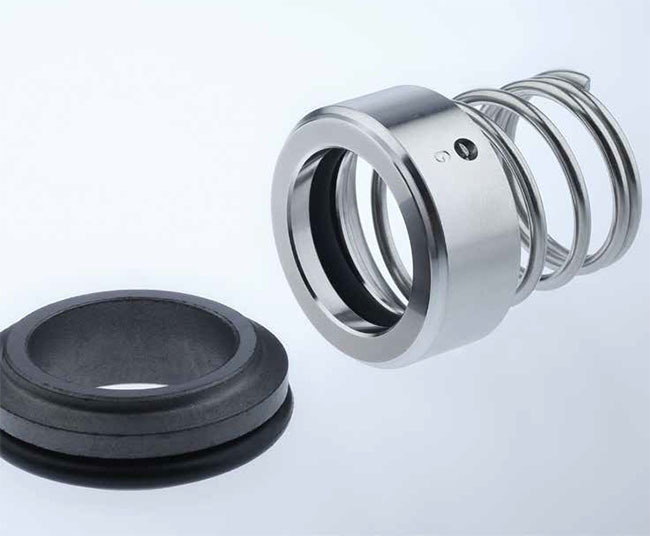

The BT-RN represents the traditionally designed robust pusher seal. This type of mechanical seal is easy to install and covers a wide range of applications; its reliability has been proven by millions of units in worldwide operation. It is a convenient solution for the widest range of applications: for clean water as well as chemical media.

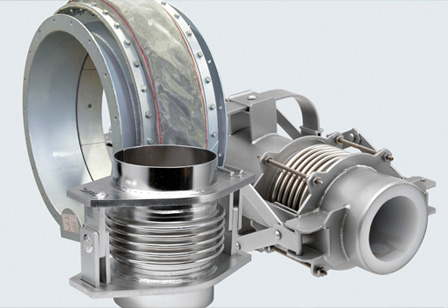

FCCU metal expansion joints
Over 50 years of challenges in the expansion joint industry proves that EagleBurgmann Expansion Joint Solutions is one of the worlds most experienced and innovative expansion joint manufacturers.
Metal and fabric expansion joints are flexible connections, installed in piping and ducting systems to accommodate expansion and vibration caused by changes in temperature, pressure and media comprise.
There are various types of expansion joints used in FCCU applications: Tied Universals, Hinge, Gimbal and Pressure Balanced. All of these fall into one of three major categories: Cold Wall, Hot Wall, and Unlined FCCU joints that will be discussed in more detail.
The bellows membrane design for all three categories is basically the same; although the bellows membrane can be single ply, multi-ply, redundant ply or reinforced.
The Bellows Membrane
For many FCCU applications Inconel 625LCF (low cycle fatigue) is typically the material of choice. Almost identical to the original Inconel 625, this special bellows grade of Inconel 625 is used for its high strength, excellent fabricability (including joining), and outstanding corrosion resistance.
Fabric expansion joints
Fabric expansion joints are vital components in most industrial plants. They are installed as flexible connections in duct and piping systems to take up or compensate for thermal expansion, vibration and/or misalignment. Selecting the right expansion joint for your system is important toward ensuring reliable operation. A properly designed and installed expansion joint can ensure uninterrupted plant performance between scheduled maintenance shutdowns.
By combining different materials and taking into consideration the thermal, chemical and mechanical resistance as well as the fatigue properties of the material, our designers provide the optimum solutions both technically and economically. Fabric expansion joints are commonly used in power plants, FGD, cement, incineration, pulp & paper, petrochemical, metal fabrication, food processing, etc.

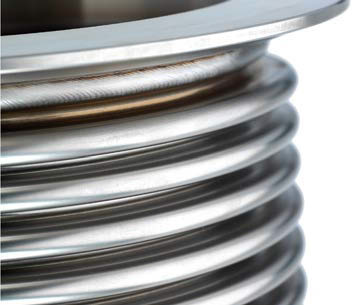

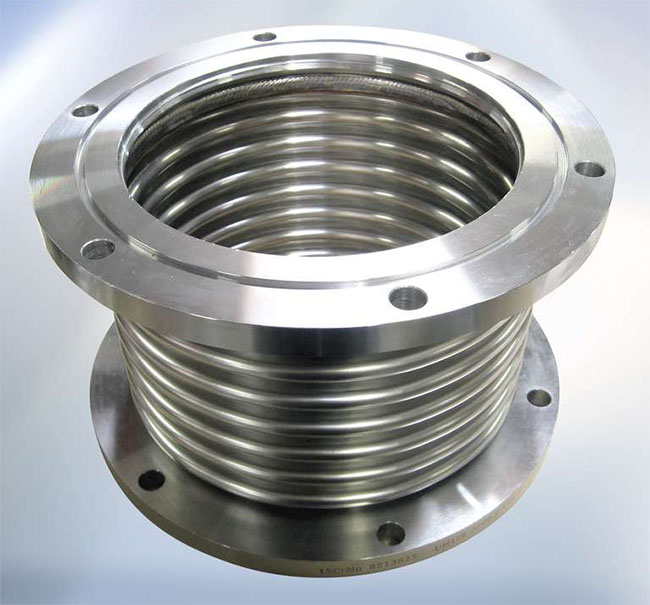

Metal expansion joints
Metal expansion joints are flexible connections, installed in piping and ducting systems to accommodate expansion and vibration caused by changes in temperature, pressure and/or media. Metal bellows are made of one or multiple plies of stainless steel in austenitic steel, Incoloys, Inconels or other formable materials. Metal expansion joints can be designed with hardware, intended to retain system pressure thrust load, while allowing intended design movement.
Our complete product range of metal expansion joints ranges from low pressure exhaust bellows to sophisticated engineered solutions for fluid catalytic cracking units. In any duct or piping system with a high temperature or a closed system with high pressure, where movements and pressure need to be accommodated, metal expansion joints are installed as flexible solutions.
In-house design and engineering including FEA together with modern, automated production technology and welding equipment, gives us superior performance for optimal productivity and welding quality. On time delivery is a very important parameter in the successful installations of metal expansion joints worldwide.
EagleBurgmann KE offer a full range of metal expansion joints from round and rectangular ducting expansion joints to highly engineered and complex FCCU assemblies with a long history of welding and forming of special materials including a wide range of nickel alloys. Documentation is offered according to the latest industry standards.

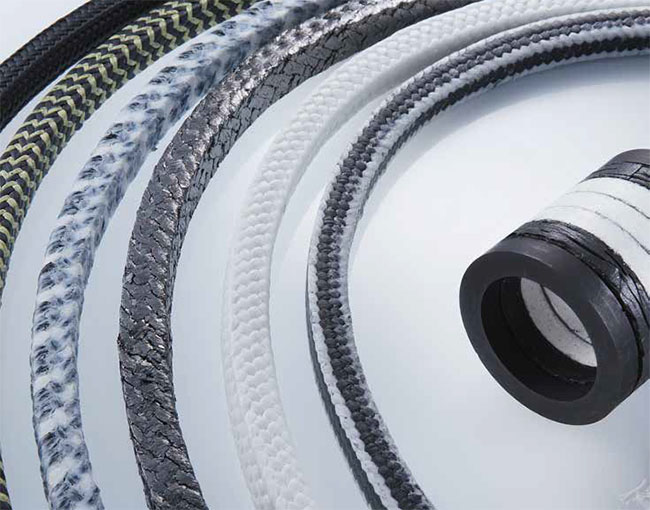

Compression packings
EagleBurgmann offers an extensive selection of compression packings, graphite sealing sets and gaskets, providing the right solution for your particular application. We know from experience that it is only when you get down to the details that you fully understand the exact product requirements profile.
Regardless of whether economic, design or safety aspects are your priority, our goal is to give you the best possible leading-edge product. If you are looking for a specially engineered solution, we are always pleased to work with your engineers to create and supply the right seal. That is what we mean by customer focus.
EagleBurgmann invented the mechanically braided, selflubricating packing. These have been manufactured for over 125 years and have proven to be an invaluable form of seal for process industry during all of this time. Alternative seal technologies have been developed during this period of time but the simplicity and quality of the EagleBurgmann product has maintained our name and its products at the forefront of seal suppliers to industry worldwide.

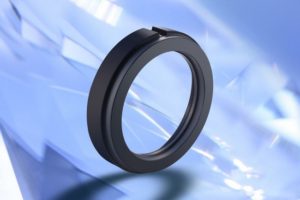

Carbon floating ring seals
EagleBurgmann Espey designs and manufactures seals and sealing systems for use in the oil and gas, chemical and petrochemical sectors, in power plant engineering, shipbuilding and in the industry in general.
Our seals offer reliable solutions for sealing a wide range of gases, gaseous mixtures, powders, vapour and water in machines and plants such as turbines, fans, compressors, centrifuges and mills. EagleBurgmann KE offer a full range of metal expansion joints from round and rectangular ducting expansion joints to highly engineered and complex FCCU assemblies with a long history of welding and forming of special materials including a wide range of nickel alloys.
In close consultation with our customers, we design seals and systems customized to suit individual applications and installations in a wide range of situations. In addition we provide extensive standard sealings to our customers. EagleBurgmann Espey innovations are renowned for their added value. Wherever machines and systems require sealing, our products make a major contribution towards boosting performance, durability and efficiency.

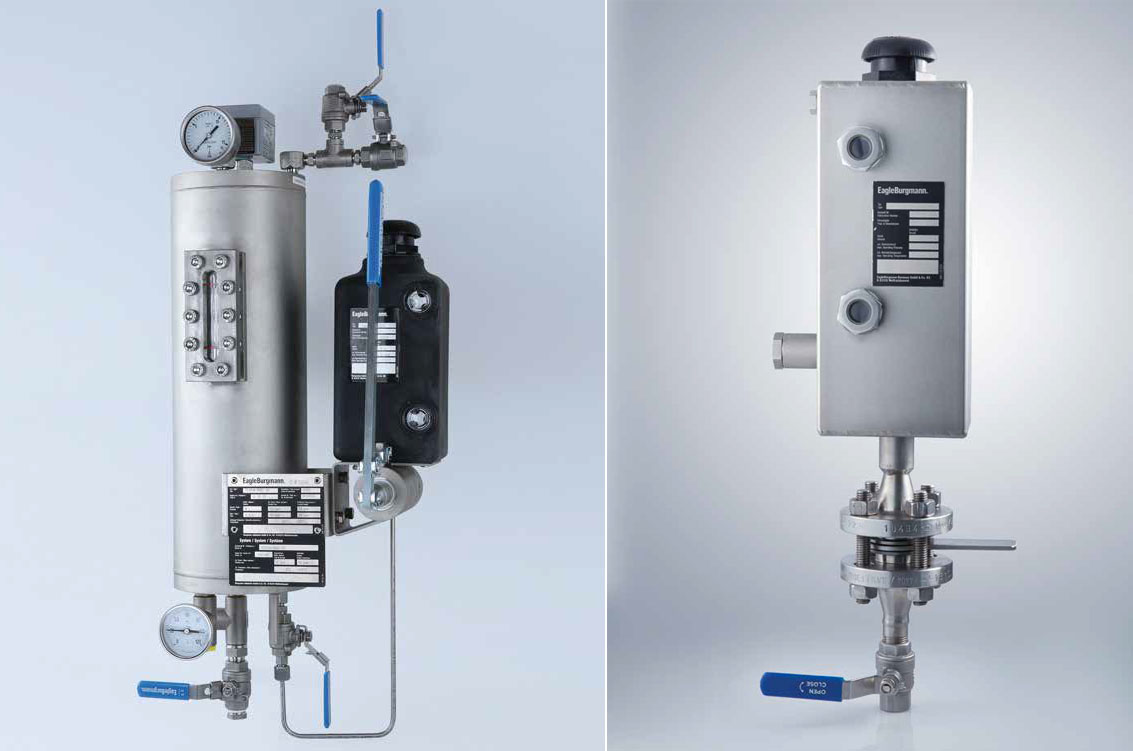

Seal supply systems
Depending on the design, application and mode of operation, supply systems are needed to fl ush, cool and pressurize mechanical seals and magnetic couplings and provide leakage compensation.
EagleBurgmann supplies a complete range of solutions from a single source including design, production, commissioning and service.
The portfolio includes a complete line of API compliant supply systems. We also off er a complete range of seal supply systems and components acc. to API 682 4th edition.
Outstanding quality is the top priority at EagleBurgmann. Our products are designed for user-friendly installation, optimal functionality and long service life.

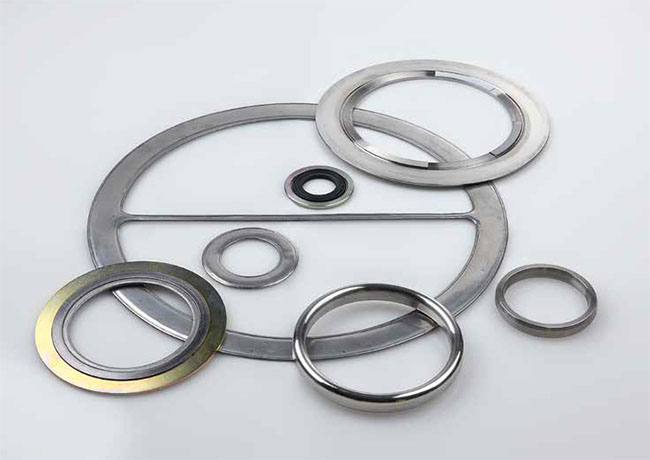

Gaskets
The right gasket for every application. Their role as key components makes seals highly important. They protect in-process products against external influences and contamination, and help prevent emissions. In doing so, they boost the plant’s process stability, availability and operating efficiency.
With a broad spectrum of high-quality gaskets ranging from fiber and rubber-based, PTFE types to graphite and metal seals plus the relevant accessories, EagleBurgmann can be relied upon to provide the right sealing solution for every application.
Besides our comprehensive portfolio of products, our knowhow in terms of the respective processes, media and standards enables us to come up with top-grade solutions which are not only technically reliable and safe but also cost-effective into the bargain.
Whatever requirements our customers might have, we know the effects of all factors on functionality and cost-effectiveness – and continually put this know-how into practice in the form of sustainable and reliable sealing solutions. To this end we have the entire spectrum of competencies needed to accompany, support and enhance the sealing solution’s entire development, life and service cycle. From engineering, consultancy and configuration right through to custom-tailored on-site services: EagleBurgmann offers all this from one single source.
