Pitch 12,7 mm
Inner width 6,4 mm
Roller Ø 8,51 mm
B1
A
SIMPLES
Z de dp PART NUMBER dm D1 A kg.
8 37,68 33,19 10114008 20 8 25 0,45
9 41,62 37,13 10114009 24 8 25 0,48
11 49,57 45,08 10114011 29 8 25 0,51
15 65,57 61,08 10114015 45 8 28 0,53
16
17
19 81,65 77,16 10114019 60 8 28 0,59
21
22 93,73 89,24 10114022 70 10 28 0,78
23 97,76 93,27 10114023 70 10 28 0,91
25 105,82 101,33 10114025 70 10 28 0,98
26 109,85 105,36 10114026 70 10 30 1,01
27 113,89 109,40 10114027 70 10 30 1,04
28 117,92 113,43 10114028 70 10 30 1,18
29 121,95 117,46 10114029 80 10 30 1,25
30 125,99 121,50 10114030 80 10 30 1,32
31 130,02 125,53 10114031 90 10 30 1,39
32 134,06 129,57 10114032 90 10 30 1,44
33 138,10 133,61 10114033 90 12 30 1,49
34 142,13 137,64 10114034 90 12 30 1,54
35 146,17 141,68 10114035 90 12 30 1,59
CHAIN SPROCKETS
36 150,21 145,72 10114036 90 12 35 1,64
38 158,28 153,79 10114038 90 12 35 1,66
39
40 166,36 161,87 10114040 90 12 35 1,78
MATERIAL C 45 UNI 7845
CAD drawings available on our site
Quantity, availability and prices on B2B Chiaravalli
CHAIN SPROCKETS ISO 13 1
r

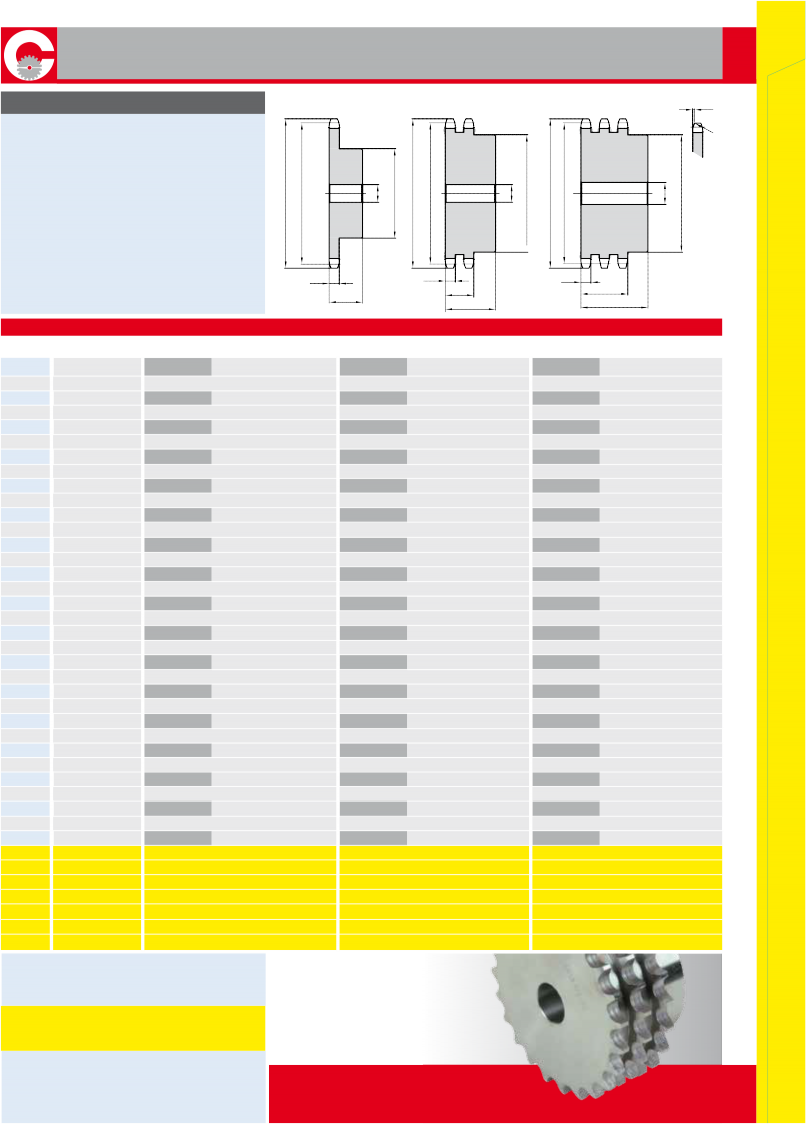

CHAIN SPROCKETS 1/2” x 5/16” for roller chains in compliance with DIN 8187 - ISO/R 606
1/2” x 5/16” C
