Pitch 12,7 mm
Inner width 6,4 mm
Roller Ø 7,75 mm
B1
A
SIMPLES
Z 15 | de | dp | PART NUMBER | dm | D1 | A | kg. |
16 | |||||||
17 | 74,37 | 69,11 | 10113017 | 52 | 8 | 28 | 0,51 |
21 | 90,46 | 85,22 | 10113021 | 68 | 8 | 28 | 0,83 |
22 | 94,49 | 89,24 | 10113022 | 70 | 8 | 28 | 0,90 |
23 | 98,52 | 93,27 | 10113023 | 70 | 8 | 28 | 0,94 |
25 | |||||||
26 | 110,61 | 105,36 | 10113026 | 70 | 8 | 30 | 1,09 |
27 | |||||||
28 | 118,68 | 113,42 | 10113028 | 70 | 10 | 30 | 1,13 |
29 | 122,71 | 117,46 | 10113029 | 80 | 10 | 30 | 1,39 |
30 | 126,75 | 121,50 | 10113030 | 80 | 10 | 30 | 1,41 |
31 | 130,78 | 125,54 | 10113031 | 90 | 10 | 30 | 1,22 |
32 | |||||||
33 | 138,86 | 133,60 | 10113033 | 90 | 10 | 30 | 1,29 |
34 | 142,89 | 137,64 | 10113034 | 90 | 10 | 30 | 1,83 |
35 | 146,93 | 141,68 | 10113035 | 90 | 10 | 30 | 1,89 |
36 | 150,97 | 145,72 | 10113036 | 90 | 10 | 30 | 2,14 |
38 | 159,04 | 153,80 | 10113038 | 90 | 12 | 35 | 2,22 |
39 | 163,08 | 157,83 | 10113039 | 90 | 12 | 35 | 1,65 |
40 | 167,12 | 161,87 | 10113040 | 90 | 12 | 35 | 2,41 |
MATERIAL C 45 UNI 7845
CAD drawings available on our site
Quantity, availability and prices on B2B Chiaravalli

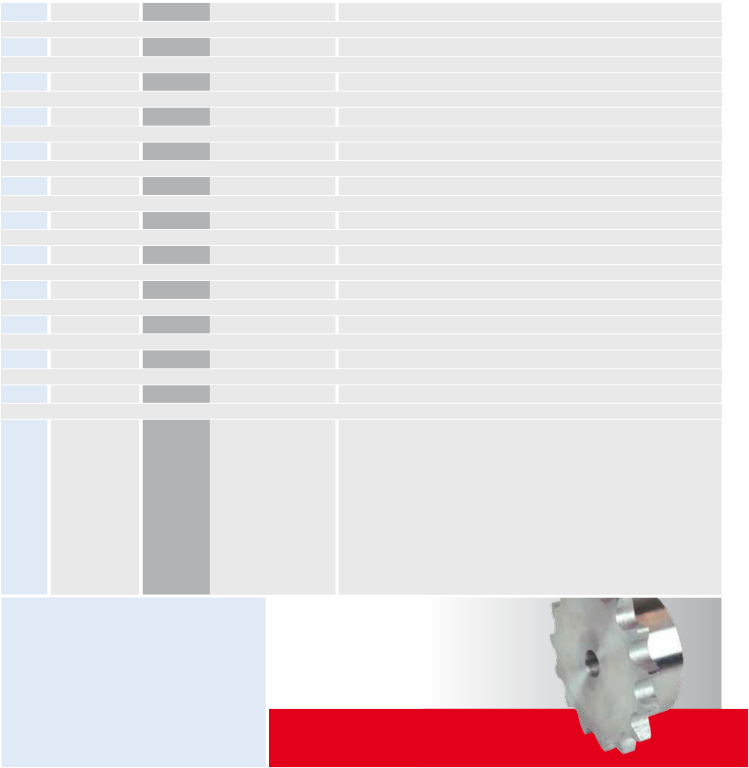

12 CHAIN SPROCKETS ISO
1/2” x 1/4” rullo 8.51 for roller chains in compliance with DIN 8187 - ISO/R 606
