DIMENSIONI CMS CMS DIMENSIONS

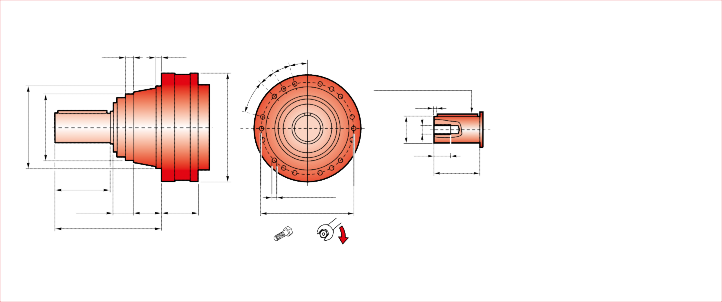

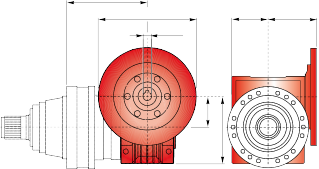

CHPL 16000 CMS - Riduttore a vite senza fine CHM in entrata CHPL 16000 CMS - CHM input worm gearboxes
CHPL | CHM 50 | CHM 63 | CHM 75 | ||||||||||||
LV | I | H | M | N | LV | I | H | M | N | LV | I | H | M | N | |
16001 | - | - | - | ||||||||||||
16002 | 338 | 50 | 110 | 60 | 80 | 347.5 | 63 | 135 | 72 | 95 | 326.5 | 75 | 161 | 86 | 112.5 |
16003 | 399 | 408.5 | 387.5 | ||||||||||||
16004 | 447 | 456.5 | 435.5 | ||||||||||||
LV
ØC M N
I
ØAE
CHPL | CHM 90 | CHM 110 | CHM 130 | ||||||||||||
LV | I | H | M | N | LV | I | H | M | N | LV | I | H | M | N | |
16001 | - | 279 | 110 | 237.5 | 127.5 | 160 | 286 | 130 | 277.5 | 147.5 | 180 | ||||
16002 | 336.5 | 90 | 193 | 103 | 129.5 | 364 | 371 | ||||||||
16003 | 397.5 | - | - | ||||||||||||
16004 | 445.5 | - | - | ||||||||||||
H
ØC p. ØAE P6
CHPLB | IEC 63 | IEC 71 | IEC 80 | IEC 90 | ||||||||||||
L | L | P | ØD | L | L | P | ØD | L | L | P | ØD | L | L | P | ØD | |
16002 | 229 | 276 | 36 | 140 | 229 | 276 | 36 | 160 | 229 | 296 | 56 | 200 | 229 | 296 | 56 | 200 |
16003 | 314 | 314 | 314 | 314 | ||||||||||||
16004 | 348.5 | 196 | 348.5 | 196 | 348.5 | 216 | 348.5 | 216 | ||||||||

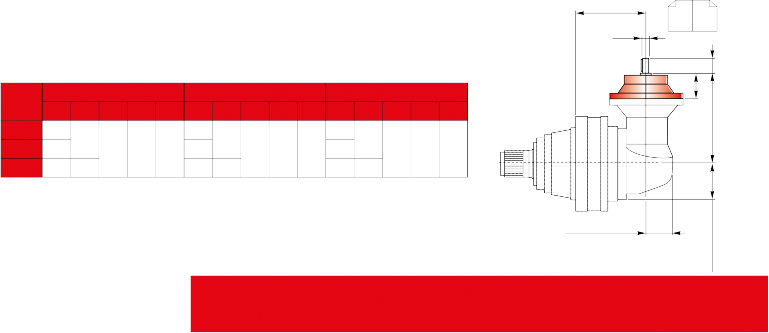

CHPLB 16000 CMS - Flange motori IEC CHPLB 16000 CMS - IEC Motor flanges
P
LP
P P P P
L p.
P4
ØD
CHPLB | IEC 100 | IEC 112 | IEC 132 | IEC 160 | IEC 180 | |||||||||||||||
L | LP | P | ØD | L | LP | P | ØD | L | LP | P | ØD | L | LP | P | ØD | L | LP | P | ØD | |
16002 | 229 | 306 | 66 | 250 | 229 | 306 | 66 | 250 | 229 | 340 | 100 | 300 | 229 | 379 | 139 | 350 | 229 | 379 | 139 | 350 |
16003 | 314 | 314 | 314 | 314 | - | |||||||||||||||
16004 | 348.5 | 226 | 348.5 | 226 | 348.5 | 260 | 348.5 | 299 | - | |||||||||||
140 (16002 / 3)
93 (16004)
76 (16002 / 3)
66.5 (16004)
CHPLB 16000 CMS - Alberi maschi entrata CHPL 16000 CMS - Male input shafts
L p.
E P7
ØE
CHPLB
LE
CM42 CM65 CP65
LT
L LT T LE ØE L LT T LE ØE L LT T LE ØE
16002 229
16003 314
333
229
93 82 42 h6 314
377.5
229
121.5 105 65 h6 314
409
153 105 65 h6
16004 348.5 253 348.5 297.5 348.5 329
140 (16002 / 3)
93 (16004)
76 (16002 / 3)
66.5 (16004)
H6 CHPL/CHPLB 16000 CMC
