Gravitational indicator

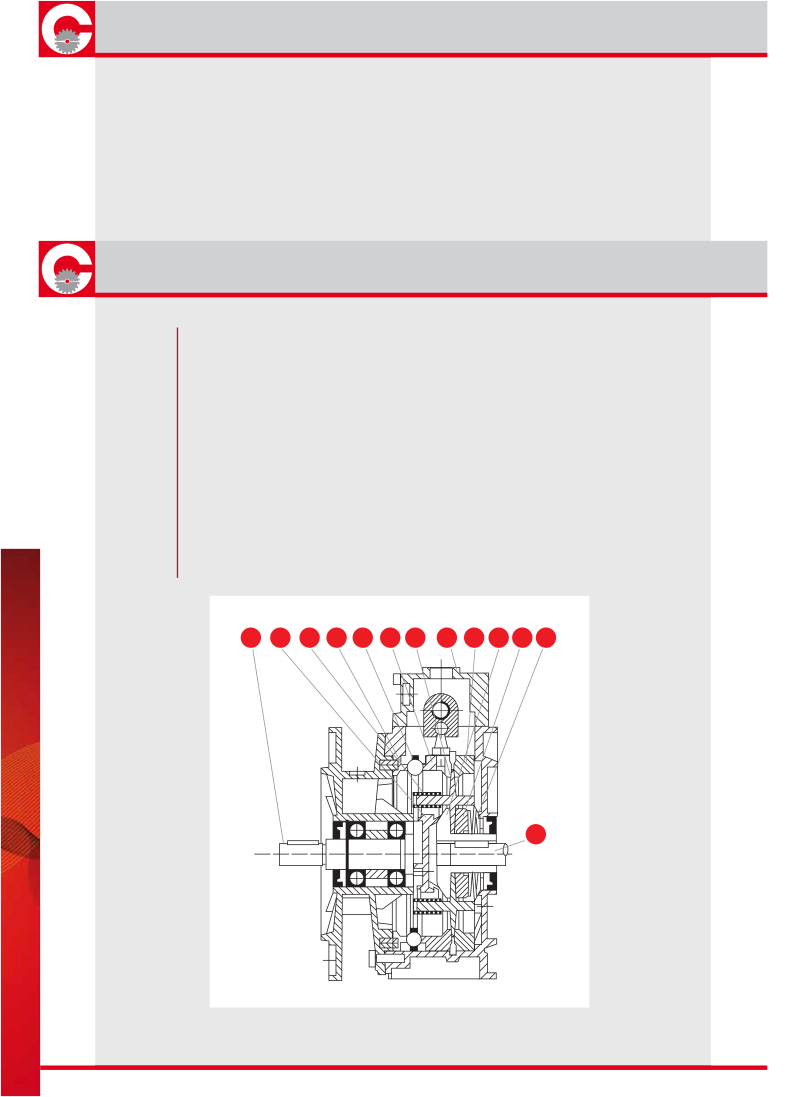

CHV 02/05/10/20/30/50 DIMENSIONS - ACCESSORIES
The gravitational indicator must be inserted into the handwheel and with a numerical scale it shows a reference link to the speed. Set the indicator moving the two hands to zero and put it into the handwheel after setting the variators to minimum speed.
The gravitational indicator doesn’t work with vertical handwheel axis.
Feet kit
CHV | 02 | 05 | 10 |
A | 110 | 120 | 160 |
B | 105 | 104 | 125 |
C | 145 | 149 | 190 |
D | 120 | 125 | 150 |
E | 15.5 | 20.5 | 26.5 |
F | 9 | 9 | 11 |
G | 10 | 12 | 14 |
H | 82 | 93 | 113 |
H
G
B
E F A
C D
