CHA DOUBLE STAGE
Part No | CHA 35/2 | CHA 40/2 | CHA 45/2 | CHA 50/2 | CHA 60/2 | CHA 70/2 | CHA 80/2 |
6 | 30/52/7 | 35/52/7 | 40/62/7 | 55/80/10 | 55/80/8 | 55/85/8 | 60/90/8 |
7 | 50/72/8 | 60/85/8 | 75/100/10 | 85/110/12 | 100/130/12 | 120/150/12 | 140/180/12 |
8 | 6010 | 6012 | 6015 | 6017 | 6020 | 6024 | 6028 |
9 | 6304 | 6305 | 6306 | NJ 308 E | NJ 2209 E | NJ 2210 E | NJ 2211 E |
10 | 6304 | 30205 | 30206 | 32208 | 32208 | 32209 | 32210 |
11 | 6205 | NJ 305 E | NJ 306 E | NJ 308 E | NJ 2209 E | NJ 211 E | NJ 2211 E |
CHA DOUBLE STAGE
CHA - PARTS LIST
133
1 | CASE A | 20 | CIRCLIP |
2 | CASE B | 21 | CIRCLIP |
3 | CASE COVER | 22 | CIRCLIP |
4 | OIL COVER | 23 | CIRCLIP |
5 | OIL COVER | 24 | SUPPORTING DISC |
6 | SEAL | 25 | SUPPORTING DISC |
7 | SEAL | 26 | FIXING ELEMENT |
8 | BEARING | 27 | BUSH |
9 | BEARING | 28 | APPARATUS FOR EXTENSION |
10 | BEARING | 29 | VENT PLUG |
11 | BEARING | 30 | OIL LEVEL PLUG |
12 | OUTPUT SHAFT | 31 | DRAIN PLUG |
13 | DRIVEN GEAR | 32 | HEXAGONAL HEAD SCREW |
14 | PINION GEAR | 33 | WASHER |
15 | PINION GEAR | 34 | NUT |
16 | DRIVEN GEAR | 35 | STUD BOLT |
17 | KEY | 36 | HEXAGONAL SOCKET HEAD |
18 | KEY | 37 | BRACKET |
19 | KEY |

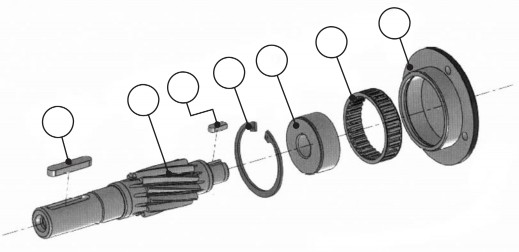

3
41
40
20
39
38
18
134
3 CASE COVER
18 KEY
20 CIRCLIP
38 PINION GEAR
39 KEY
40 BUSH
CHA - PARTS LIST
41 BACKSTOP
