OUTPUT SHAFT

< Previous Chiaravalli Gearboxes and Motors | Products index | Next Chiaravalli Gearboxes and Motors >

OUTPUT SHAFT

BB HB

S

BH

H H

HC G T B R

CHA - SHAFT DIMENSION

Type

Dimensions

B G7 BB BH G H HB HC R S T

131

	CHA 30/1/30	30	8	33,3	-	-	-	-	110	-	-
	CHA 35/2/35	35	10	38,3	8	M12	-	-	124	40	106
	CHA 40/2/40	40	12	43,3	8	M12	-	-	144	52	124
	CHA 40/2/45	45	14	47,3	8	M12	-	-	144	52	124
	CHA 45/2/45	45	14	48,8	10	M16	-	-	162	62	140
	CHA 45/2/50	50	14	53,8	10	M16	-	-	162	62	140
	CHA 45/2/55	55	16	59,3	10	M16	-	-	162	72	140
	CHA 50/2/50	50	14	53,8	10	M16	-	-	182	62	160
	CHA 50/2/55	55	16	59,3	10	M16	-	-	182	72	160
	CHA 50/2/60	60	18	64,4	12	17	M12	42	182	72	160
	CHA 60/2/60	60	18	64,4	12	17	M12	42	199	72	175
	CHA 60/2/70	70	20	74,9	12	22	M16	50	199	90	175
	CHA 70/2/70	70	20	74,9	12	22	M16	50	223	90	193
	CHA 80/2/80	80	22	85,4	18	22	M16	60	249	95	219

H

G F

I

D A B

E O

C

L

M

P N

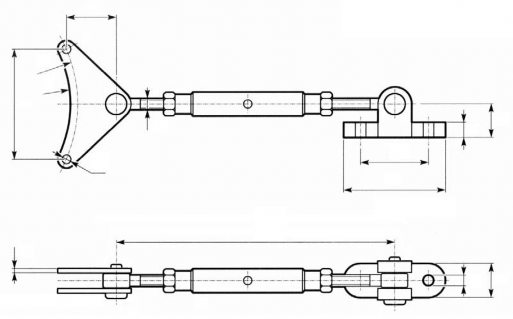

CHA - TORQUE TENSION ARM

132

Type

A B C D E F G H I L Min L Max M N O P

	CHA 35/2	10	25	75	M10	50	111	120	45	92	200	300	4	25	8,5	8	,5
	CHA 40/2	16	35	105	M12	70	143	151	51	115,5	210	310	4	35	8,5	10,5
	CHA 45/2	16	35	105	M12	70	164	172	57	132	210	310	5	35	10,5	10,5
	CHA 50/2	18	40	115	M14	75	195	205	70	157	240	360	5	40	10,5	12,5
	CHA 60/2	18	40	115	M14	75	221	234	84	179	240	360	5	40	12,5	12,5
	CHA 70/2	20	45	135	M16	85	247	260	100	199	260	410	6	50	12,5	14,5
	CHA 80/2	20	45	135	M16	85	272	285	102	218	260	410	6	50	13	14,5
