POSITION OF TERMINAL BOX
Standard Standard
In the case of specific requirements, when ordering, specify the position of the terminal box as shown in the diagram.
Quantity, availability and prices with Chiaravalli B2B

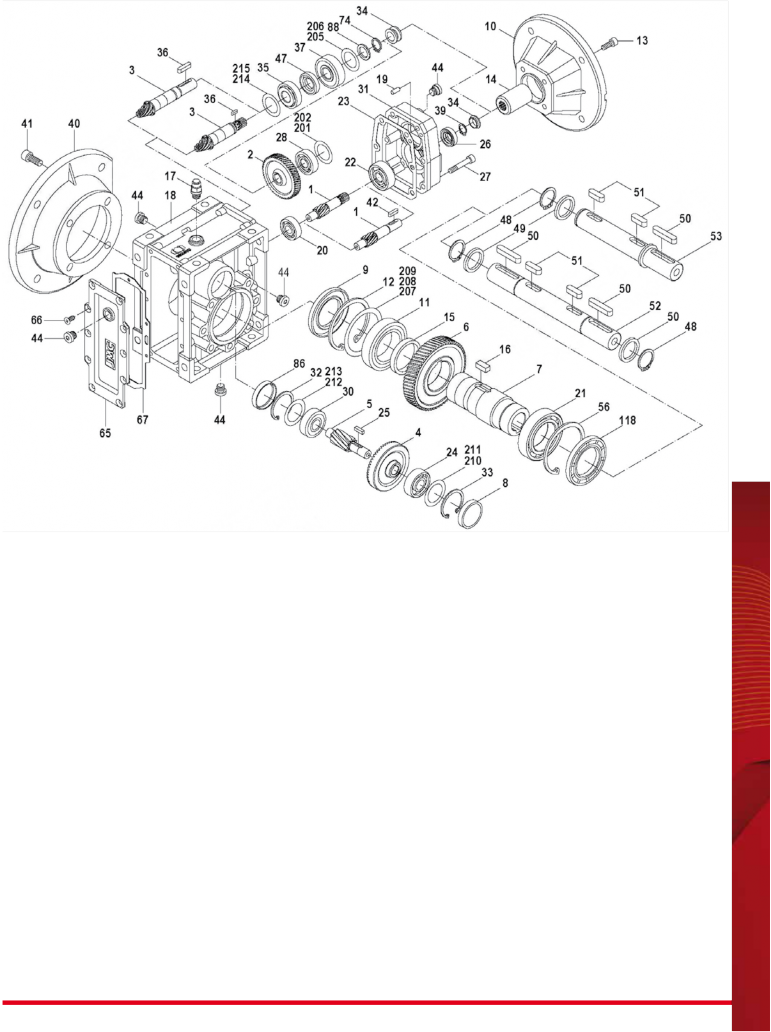

CHO - EXPLODED DRAWING AND SPARE PARTS LIST
119
1 | PINION | 39 | SHAFT-CIRCLIP |
2 | GEAR | 40 | OUTPUT FLANGE |
3 | PINION SHAFT | 41 | INNER HEX SCREW |
4 | GEAR | 42 | KEY |
5 | PINION SHAFT | 44 | OIL PLUG |
6 | GEAR | 47 | OIL SEAL |
7 | HOLLOW SHAFT | 48 | SHAFT-CIRCLIP |
8 | CLOSING CAP | 49 | GASKET |
9 | OIL SEAL | 50 | KEY |
10 | INPUT FLANGE | 51 | KEY |
11 | BEARING | 52 | DOUBLE OUTPUT SHAFT |
12 | HOLE-CIRCLIP | 53 | DOUBLE OUTPUT SHAFT |
13 | INNER HEX SCREW | 56 | HOLE-CIRCLIP |
14 | INPUT SHAFT | 65 | GEARCASE COVER |
15 | SPACER | 66 | HEXAGON SCREW |
16 | KEY | 67 | RUBBER GASKET |
17 | BREATHER VALVE | 74 | SHAFT-CIRCLIP |
18 | GEARCASE | 86 | CLOSING CAP |
19 | STIFTE | 88 | WASHER |
20 | BEARING | 118 | OIL SEAL |
21 | BEARING | 201 | SHIM RING |
22 | BEARING | 202 | SHIM RING |
23 | HOUSING GASKET | 205 | SHIM RING |
24 | BEARING | 206 | SHIM RING |
25 | KEY | 207 | SHIM RING |
26 | OIL SEAL | 208 | SHIM RING |
27 | INNER HEX SCREW | 209 | SHIM RING |
28 | BEARING | 210 | SHIM RING |
30 | BEARING | 211 | SHIM RING |
31 | 3 STAGE GEARCASE | 212 | SHIM RING |
32 | HOLE-CIRCLIP | 213 | SHIM RING |
33 | HOLE-CIRCLIP | 214 | SHIM RING |
34 | RUBBER RING | 215 | SHIM RING |
35 | BEARING | 216 | SHIM RING |
36 | KEY | 217 | SHIM RING |
37 | BEARING |
