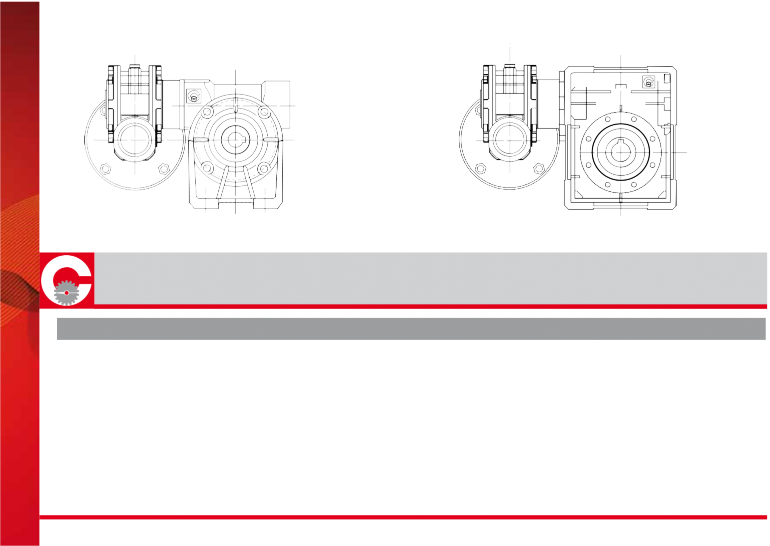

CHPC.. /CH 04-05
R1
CHPC - CH | R1 | I2 | For other dimensions see pages 65 - 66 - 70 - 71 and 72 of the catalogue. |
63 + 04 | 115 | 40 | |
63 + 05 | 120 | 40 | |
71 + 05 | 129 | 50 | |
71 + 06 | 160 | 50 | |
71 + 07 | 183 | 50 | |
80 + 07 | 203 | 63 | |
71 + 08 | 194 | 50 | |
80 + 08 | 214 | 63 |
CHPC/CH - PERFORM. WITH 4-POLE MOTORS - 1400 REVS. INPUT
The choice of power installed is tied to the unification of the motors, therefore it is sometimes in exuberance compared to the gear; always verify the maximum torque indicated when making the selection and if in doubt please contact our technical office.
Quantity, availability and prices with Chiaravalli B2B
(§3 CH -CH DOUBLE WORM GEAR

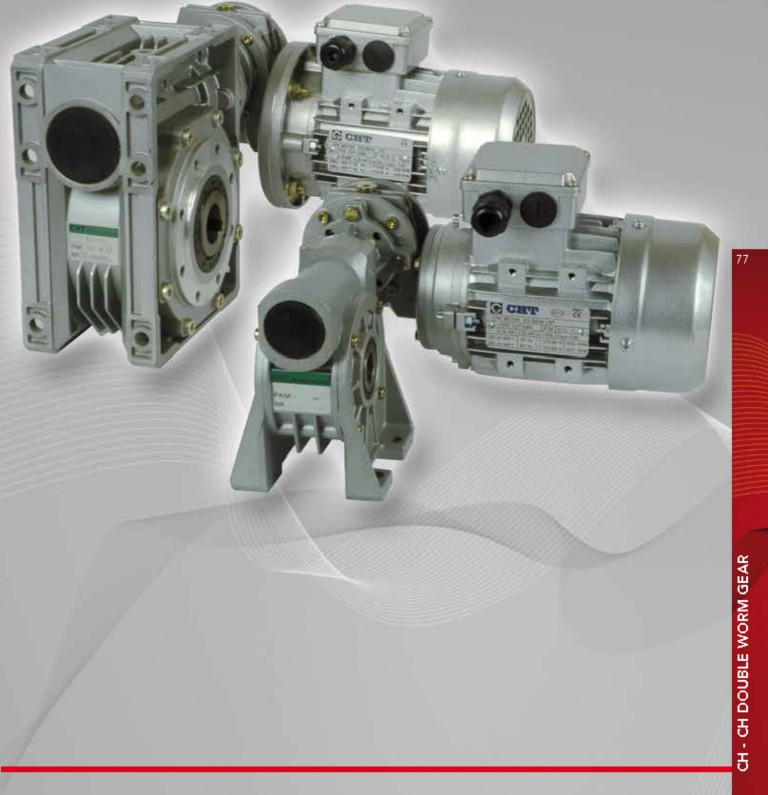

CH - CH DOUBLE WORM GEARS
DESIGNATION CH(R)/CH - CH(R)/CH..P
TYPE | SIZE | VERSION | FLANGE POS. (1) | i | EXEC. | M.M.F. |
CH/CH | 03/04 | F | 1 | RATIO SEE | OAD | 63B5 |
CH/CH..P | 03/05 | FA | 2 | OAS | 63B14 | |
CHR/CH | (2) | OBD | 56B5 | |||
CHR/CH..P | PAGE 80 | OBS | 56B14 | |||
VAD | ||||||
VAS | ||||||
VBD | ||||||
VBS |
TYPE | SIZE | VERSION | FLANGE POS. (1) | i | EXEC. | M.M.F. |
CH/CH | 03/06 | FC | 1 | RATIO SEE | OAD | 71B5 |
CH/CH..P | 04/07 | F | 2 | OAS | 71B14 | |
CHR/CH | 04/08 | (3) | OBD | 63B5 | ||
CHR/CH..P | PAGE 80 | OBS | 63B14 | |||
VAD | 56B5 | |||||
VAS | 56B14 | |||||
VBD | ||||||
VBS |
