OUTPUT SHAFT DIMENSIONS
b
D
t
CHR/CHRE DIMENSIONS
R
TYPE | A | B | C | D(H7) | d(h6) | f | H | I | R | b | t |
CHR 03 | 20 | 50 | / | 14 | 9 | / | 55 | 30 | 55 | 5 | 16.3 |
CHR 04 | 30 | 54 | / | 18 | 11 | / | 72 | 44.6 | 64 | 6 | 20.8 |
CHR 05 | 40 | 65 | / | 25 | 16 | M6 | 82 | 49.5 | 82 | 8 | 28.3 |
CHR 06 | 40 | 110.5 | / | 25 | 18 | M6 | 72.5 | 62.17 | 120 | 8 | 28.3 |
CHR 07 | 40 | 128 | / | 30 | 19 | M6 | 87 | 75 | 127 | 8 | 33.3 |
CHR 08 | 50 | 144 | / | 35 | 25 | M8 | 100 | 86.9 | 140 | 10 | 38.8 |
CHRE 03 | 20 | 50 | 50 | 14 | 9 | / | 55 | 30 | 55 | 5 | 16.3 |
CHRE 04 | 30 | 54 | 56 | 18 | 11 | / | 72 | 44.6 | 64 | 6 | 20.8 |
CHRE 05 | 40 | 65 | 65 | 25 | 16 | M6 | 82 | 49.5 | 82 | 8 | 28.3 |
CHRE 06 | 40 | 110.5 | 74 | 25 | 18 | M6 | 72.5 | 62.17 | 120 | 8 | 28.3 |
CHRE 07 | 40 | 128 | 88.5 | 30 | 19 | M6 | 87 | 75 | 127 | 8 | 33.3 |
CHRE 08 | 50 | 144 | 101.5 | 35 | 25 | M8 | 100 | 86.9 | 140 | 10 | 38.3 |

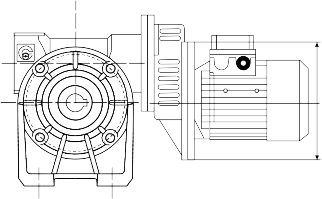

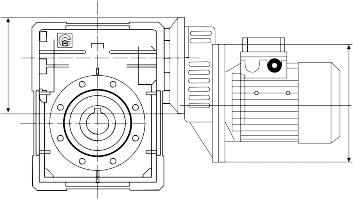

CHPC/CH -WORM GEAR WITH PRE-STAGE MODULE
Z
Z1
Z
Z Z1
CHPC 63
CHPC 71
CHPC 80
11/140
14/160
19/200
11/105
14/120
19/160
WARNING: The gearbox connected with the
DESIGNATION CHPC / CH - CH..P CHPC / CHE - CH..P
TYPE | SIZE | i = | M.M.F. | |||||
CHPC | 63 | 3 | 6 | 3B5 | ||||
71 | 3 | 7 | 1B5 | |||||
80 | 3 | 8 | 0B5 | |||||
75
ORDER EXAMPLE
CHPC 71 CH 05 i= 108(3x36) M.M.F. 71
If the motor is also required, please specify: Size es. 71 B4
Power es. Kw 0.37
Poles es. 4

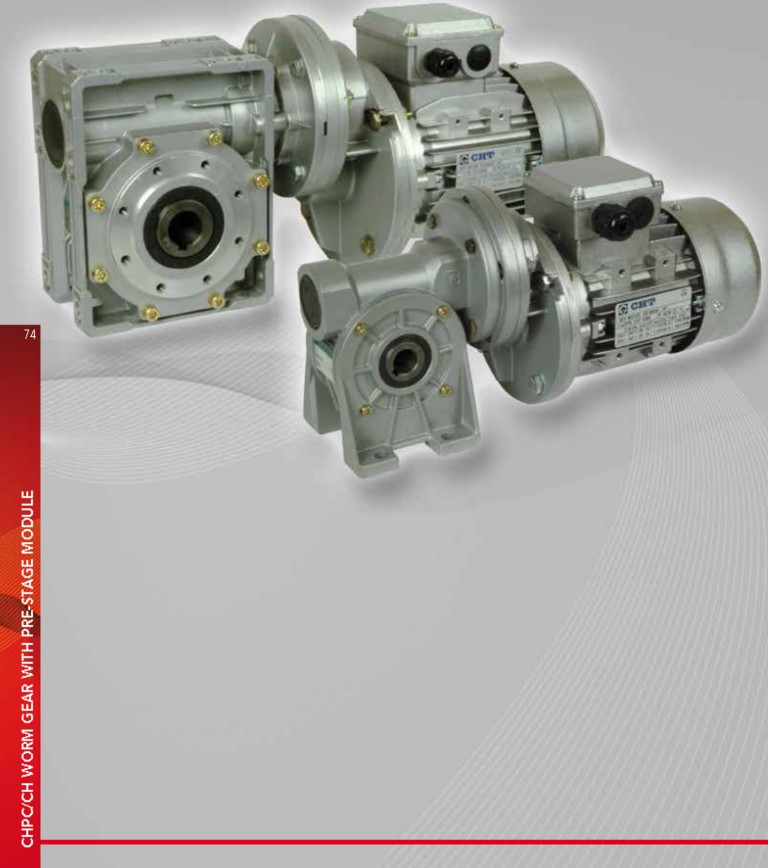

CHPC WORM GEAR WITH PRE-STAGE MODULE
Voltage es. V230/400 Frequency es. 50 Hz
