Bonfiglioli servomotors with integrated drive provide higher flexibility for Automatic machine covering a stall torque between 2,7 and 36 Nm. iBMD can be controlled by a Master or in Stand alone mode. It reduces in both cable and Electrical cabinet costs. Reducing the total unit size by more than 35% compared to a classical servo drive solution.
Sizes
82,102,145,170
Torque range
2,7 to 36 Nm
DC Voltage
560 V
Absolute encoders
Single and Multi turn

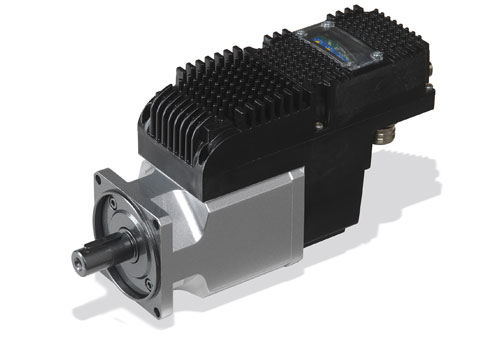

Bonfiglioli servomotors with integrated drive
Communication Interface
CANopen , EtherCAT
I/Os on Board configurable
ST-IEC61131 programming
STO function
CE declaration
Driver Codesys available
DC power supply
20 A, 40 A
